ZCP06

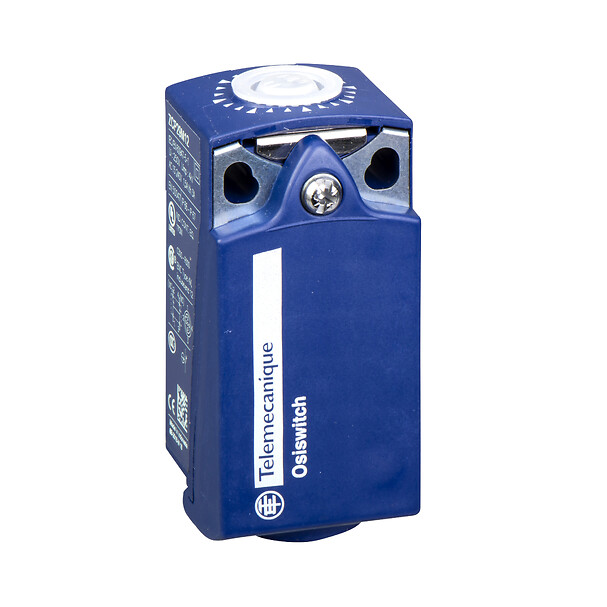

Limit switch body, Limit switches XC Standard, ZCP, compact, 1NC+1 NO, slow break

End of commercialisation End of commercialization date : End of service date :

Download pdf datasheet Download 3d cad file Find a distributor

ZCP06 is replaced by the following product:

ZCP25

Limit switch body, Limit switches XC Standard, ZCP, compact, 1NC+1 NO, slow break

Quantity :  1

Expand all

Datasheet

Range of product
Telemecanique Limit switches XC Standard
Series name
Standard compact
Product or component type
Limit switch body
Device short name
ZCP
Design
Compact
Body type
Fixed
Body material
Plastic
Contacts type and composition
1 NC + 1 NO
Contact operation
Slow-break, make before break
Electrical connection
Open terminal, clamping capacity: 1 x 0.5...2 x 2.5 mm²
Contacts insulation form
Zb
Contacts material
Silver plated contacts
Positive opening
With
Contact code designation
B300, AC-15 (Ue = 240 V), Ie = 1.5 A conforming to IEC 60947-5-1 appendix A, R300, DC-13 (Ue = 250 V), Ie = 0.1 A conforming to IEC 60947-5-1 appendix A
Product compatibility
XCKP
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
7.5 CENTIMETER
Package 1 width
4.1 CENTIMETER
Package 1 length
4.1 CENTIMETER
Package 1 weight
68 GRAM
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
