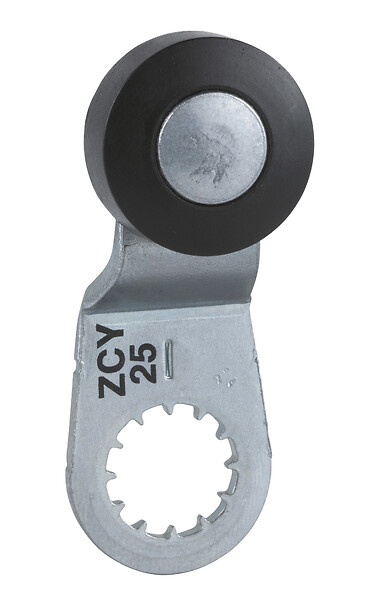

ZCY25
Limit switch lever, Limit switches XC Standard, ZCY, thermoplastic roller
Commercialised
Expand all
Datasheet
Range of product
Telemecanique Limit switches XC Standard
Series name
Standard format
Product or component type
Limit switch lever
Device short name
ZCY
Product compatibility
XCKD
XCKP
XCKT
XCMD
XCKP
XCKT
XCMD
Movement of operating head
Rotary
Type of operator
Roller lever spring return thermoplastic
Type of approach
Lateral approach
Switch actuation
By 30° cam
Positive opening
With
Environmental characteristic
Standard environment
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S01
Number of units in package 2
300
Package 2 height
1.5 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
16 CENTIMETER
Package 2 weight
0.0042 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
