XEP3S1W6B529

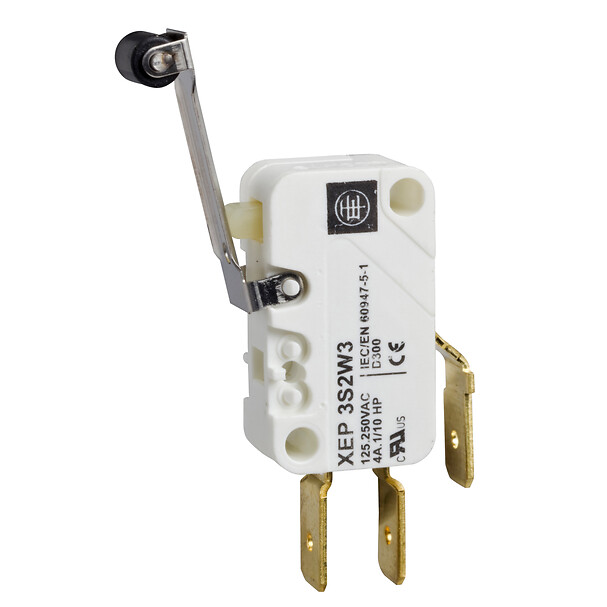

Microswitch, Limit switches XC Standard, miniature limit switch, roller lever, 4.8 mm cable clip tags

End of comm. announced 下架日期 : December 31st 2026 终止服务日期 : December 31st 2026

下载PDF参数资料 下载3D CAD文件 查找经销商

展开全部

参数资料

Range of product
OsiSense XC
Series name
Special format
Product or component type
Microswitch
Device short name
XEP3
Detector design
Miniature, DIN 41635 A format
Head type
Plunger head
Lever material
Glass reinforced polyamide roller
stainless steel
Lever fixing position
B
Movement of operating head
Linear
Type of operator
Roller lever
Switch actuation
Horizontal
Type of approach
Lateral approach
Electrical connection
4.8 mm cable clip tags
Contacts type and composition
1 C/O standard
Contact operation
Snap action
Contacts material
AgNi
Body material
Polyester
Contact code designation
B300, AC-15 (Ue = 240 V, Ie = 1.5 A) conforming to IEC 60947-5-1 appendix A, R300, DC-13 (Ue = 250 V, Ie = 0.1 A) conforming to IEC 60947-5-1 appendix A
Terminals description ISO n°1
(1-2-4)OC
IP degree of protection
IP40
Marking
CE
Standards
CURus
IEC 60947-5-1
IEC 61058
UL 1054
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
1.2 CENTIMETER
Package 1 width
3.4 CENTIMETER
Package 1 length
5.5 CENTIMETER
Package 1 weight
0.005 KILOGRAM
Unit type of package 2
S01
Number of units in package 2
200
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
1.414 KILOGRAM
Unit type of package 3
S01
Number of units in package 3
200
Package 3 height
15 CENTIMETER
Package 3 width
15 CENTIMETER
Package 3 length
40 CENTIMETER
Package 3 weight
1.414 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

展开全部

技术图纸

Dimensions

epds
  • (1) 13.2 max.

Wiring Diagram

Single-pole CO Snap Action

epds
  • 1 : Black
  • 2 : Grey
  • 4 : Blue

Operating Curves

epds
  • (A) Number of cycles
  • (B) Current
  • 1 : Resistive circuit
  • 2 : Inductive circuit

展开全部

相关产品和配件

XEP3S1W3B529

Microswitch, Limit switches XC Standard, miniature limit switch, roller lever, 6.35 mm cable clip tags
