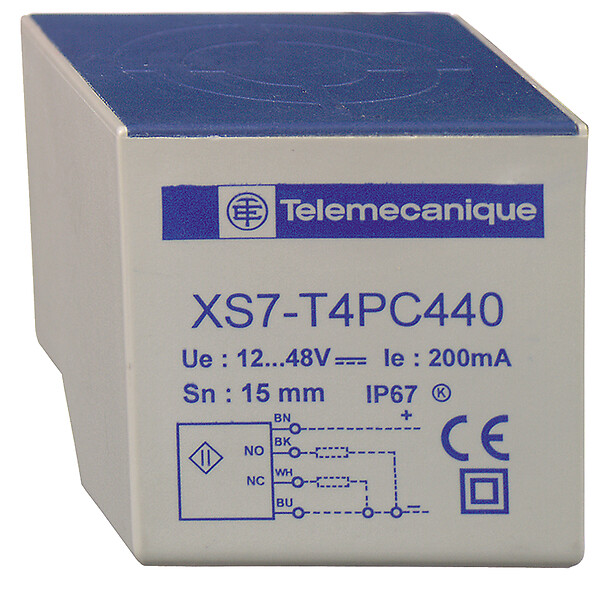

XS7T4PC440
Inductive sensor XS7 40x40x40 - plastic - Sn15mm - 12..48VDC - cable 2m
End of commercialisation 下架日期 : June 30th 2014 终止服务日期 : September 30th 2014
XS7T4PC440 is replaced by the following product:
XS8C2A1PCM12
Inductive proximity sensors XS, inductive sensor XS8 40x40x70, PBT, Sn20 mm, 12...48 VDC, M12
Quantity : 1
展开全部
参数资料
Range of product
Telemecanique Inductive proximity sensors XS
Series name
General purpose
Sensor type
Inductive proximity sensor
Product specific application
Not applicable
Sensor name
XS7
Sensor design
Cubic form 40 x 40 x 40
Size
40 mm
Body type
Fixed
Type of output signal
Discrete
Wiring technique
4-wire
Enclosure material
Plastic
Discrete output function
1 NO + 1 NC
Discrete output type
PNP
Electrical connection
Cable
[Us] rated supply voltage
12...48 V DC with reverse polarity protection
Switching capacity in mA
<= 200 mA with overload and short-circuit protection
IP degree of protection
IP67 conforming to IEC 60529
Detector flush mounting acceptance
Flush mountable
Material
Plastic
Output circuit type
DC
Sensing range
8...15 mm
Front material
Plastic
Differential travel
3...20% of Sr
Repeat accuracy
<= 3% of Sr
Wire insulation material
PVC
Cable composition
4 x 0.34 mm²
Status LED
Output state: 1 LED (yellow)
Switching frequency
<= 1000 Hz
Residual current
0.1 mA open state
Voltage drop
<2 V (closed)
Current consumption
0...10 mA no-load
Delay first up
7 MILLISECOND
Delay response
0.3 MILLISECOND
Marking
CE
Delay recovery
0.7 MILLISECOND
Product certifications
CCC
CSA
UL
CSA
UL
Unit type of package 1
PCE
Number of units in package 1
1
