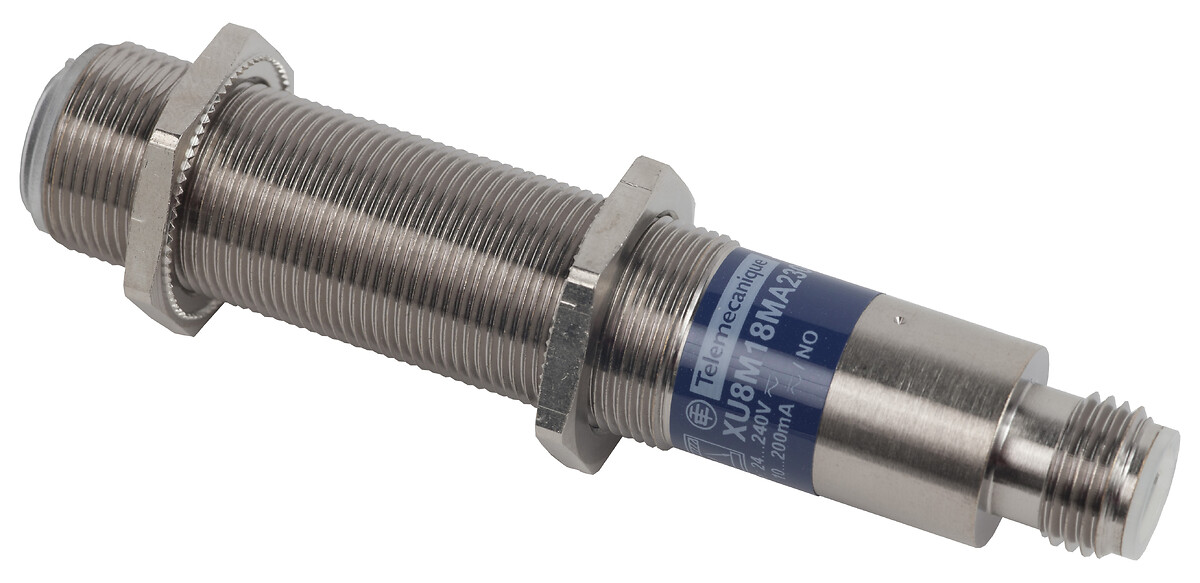

XU8M18MA230WK

Photoelectric sensors XU, XU8, BGS, 90°, Sn 0.12 m, 24...240VAC/DC, 1/2"

End of commercialisation 下架日期 : May 31st 2023 终止服务日期 : May 31st 2023

下载PDF参数资料 EN 下载PDF参数资料 ZH 下载3D CAD文件 查找经销商

XU8M18MA230WK is replaced by the following product:

XU8M18MA230K

Photoelectric sensors XU, XU8, BGS, Sn 0.12 m, 24...240VAC/DC, 1/2"

Quantity :  1

展开全部

参数资料

Range of product
Telemecanique Photoelectric sensors XU
Series name
General purpose single mode
Electronic sensor type
Photo-electric sensor
Sensor name
XU8
Sensor design
Cylindrical M18
Detection system
Diffuse with background suppression
Sensing range
> 0...0.3 m
Material
Metal
Type of output signal
Discrete
Supply circuit type
AC/DC
Wiring technique
2-wire
[Sn] nominal sensing distance
0.12-0.12 m diffuse with background suppression
Discrete output function
1 NO
Electrical connection
1 male connector 1/2"20 UNF, 3 pins
Product specific application
Not applicable
Emission
Infrared diffuse with background suppression
Enclosure material
Nickel plated brass
Lens material
PMMA
Output type
Solid state
Add on output
Without
Status LED
1 LED (yellow) for output state
[Us] rated supply voltage
24...240 V AC/DC
Residual current
-
Switching capacity in mA
10...200 mA (to be used with 0.4 A quick-blow fuse in series with the load)
Maximum voltage drop
<6 V (closed state)
Delay first up
300 MILLISECOND
Delay response
20 MILLISECOND
Delay recovery
20 MILLISECOND
Setting-up
Sensitivity adjustment
Supply voltage limits
20-264 V AC/DC
Ambient air temperature for operation
-25-55 °C
Vibration resistance
7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection
IP67 conforming to IEC 60529
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4.2 CENTIMETER
Package 1 width
9.6 CENTIMETER
Package 1 length
13.2 CENTIMETER
Package 1 weight
95 GRAM
Unit type of package 2
S02
Number of units in package 2
22
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
2.545 KILOGRAM
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

展开全部

技术图纸

Dimensions

epds

Wiring Schemes

Connector

epds
  • 1 : Grounding
  • 2 : AC/DC
  • 3 : AC/DC

Wiring Schemes

2-wire AC or DC

epds
  • 1 : Grounding
  • 2 : AC/DC
  • 3 : AC/DC

Detection Curves

Diffuse System with Adjustable Background Suppression

epds
  • 1 : White 90%
  • 2 : Grey 18%

Detection Curves

Variation of Usable Sensing Distance Su

epds
  • 1 : White 90%
  • 2 : Grey 18%

Variation of Usable Sensing Distance Su

epds
  • 1 : White 90%
  • 2 : Grey 18%
  • A-B : Object reflection coefficient
  • (1) Black 6%
  • (2) Grey 18%
  • (3) White 90%
  • (4) Sensing range
  • (5) Non sensing zone (matt surfaces)
