XU9N18PP341

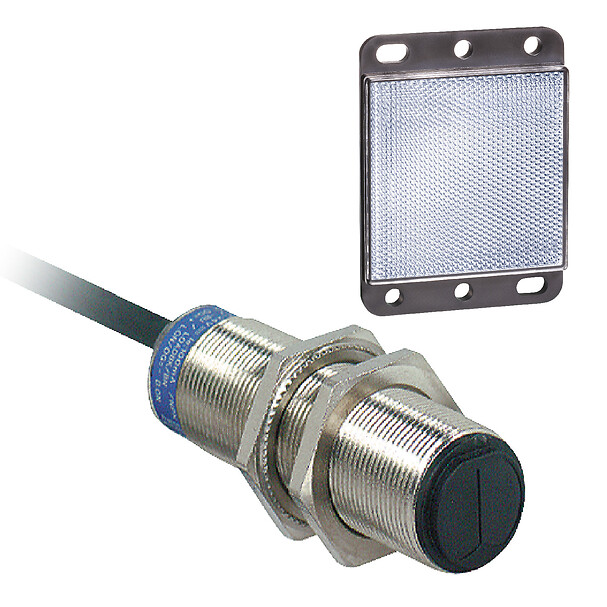

Photo-electric sensor - XU9 - polarised - Sn 2m - 12..24VDC - cable 2m
End of commercialisation 下架日期 : September 21st 2022 终止服务日期 : September 21st 2022
展开全部
参数资料
Range of product
Telemecanique Photoelectric sensors XU
Series name
Application food and beverage
Electronic sensor type
Photo-electric sensor
Sensor name
XU9
Sensor design
Cylindrical M18
Detection system
Polarised reflex
Material
Stainless steel
Type of output signal
Discrete
Supply circuit type
DC
Wiring technique
3-wire
Discrete output type
PNP
Discrete output function
1 NO or 1 NC programmable
Electrical connection
Cable
Product specific application
Not applicable
Emission
Red polarised reflex
Enclosure material
Stainless steel : 304 CU
Lens material
PMMA
Output type
Solid state
Add on output
Without
Cable composition
4 x 0.34 mm²
Status LED
1 LED (green) for supply on, 1 LED (yellow) for output state
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Switching capacity in mA
<= 100 mA (overload and short-circuit protection)
Maximum voltage drop
<1.5 V (closed state)
Current consumption
<= 30 mA no-load
Delay first up
15 MILLISECOND
Delay response
1 MILLISECOND
Delay recovery
1 MILLISECOND
Setting-up
Without sensitivity adjustment
Kit composition
Reflector XUZC50
sensor
sensor
Vibration resistance
25 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection
IP67 conforming to IEC 60529
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4.2 CENTIMETER
Package 1 width
9.5 CENTIMETER
Package 1 length
13.2 CENTIMETER
Package 1 weight
151 GRAM
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
展开全部
技术图纸
Dimensions
Mounting and Clearance
Wiring Schemes
3-wire, PNP NO or NC Programmable Function
Detection Curves
Polarised Reflex System with Reflector XUZC50
Excess Gain Curves (Ambient Temperature: + 25° C)
Polarised Reflex System with Reflector XUZC50
