XUM2AKXBL2T

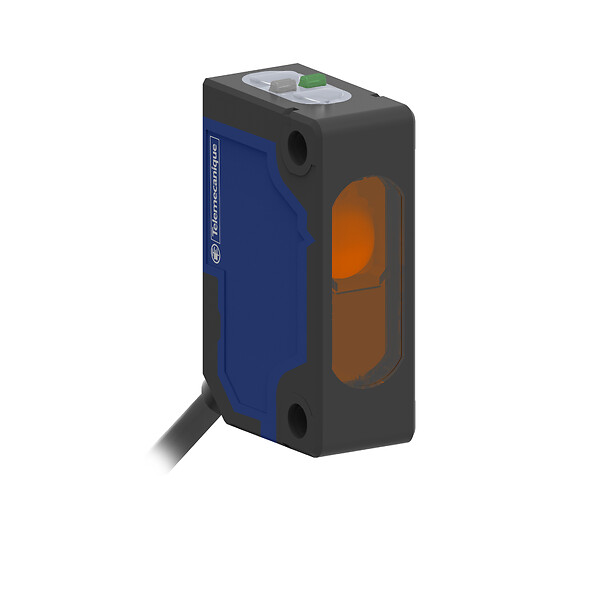

Photoelectric sensors XU, miniature, thru beam, Smax=30 m, transmitter, cable 2 m

arrow

Commercialised

下载PDF参数资料 下载3D CAD文件 查找经销商

展开全部

参数资料

Range of product
Telemecanique Photoelectric sensors XU
Series name
General purpose single mode
Electronic sensor type
Photo-electric sensor transmitter
Sensor name
XUM
Sensor design
Miniature
Detection system
Thru beam
Material
Plastic
Supply circuit type
DC
Wiring technique
2-wire
Electrical connection
Cable
Emission
-
Enclosure material
PBT
Lens material
PMMA
Status LED
-
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Switching capacity in mA
<= 100 mA with overload and short-circuit protection
Switching frequency
1000 Hz
Maximum voltage drop
<2 V
Current consumption
20 mA no-load
Delay first up
100 MILLISECOND
Vibration resistance
9 gn, amplitude = +/- 1.5 mm (f = 10-500 Hz)for every axis conforming to IEC 60068-2-6
Shock resistance
100 gn (duration = 11 ms) for for every axis conforming to IEC 60068-2-27
IP degree of protection
IP67 conforming to IEC 60529, IP65 conforming to IEC 60529
Unit type of package 1
PCE
Number of units in package 1
1
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
10.308 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

展开全部

相关产品和配件

XUZA50

Fixing bracket, Photoelectric sensors XU, accessory for sensor, XUM, metal

XUZASM02

Photoelectric sensors XU, accessory for sensor, XUM, Wrap around horizontal mounting bracket, for pre-cabled sensors, with 2 M3 screws

XUZASM03

Photoelectric sensors XU, accessory for sensor, XUM, Wrap around vertical mounting bracket, for pre-cabled sensors, with 2 M3 screws

XUZASM04

Photoelectric sensors XU, accessory for sensor, XUM, Rear mounting bracket, 2 M3 screws

XUZASM05

Air blower mounting block for cleaning the sensitive face of the sensor using compressed air

XUZDHM05

Photoelectric sensors XU, accessory for sensor, XUM, horizontal diaphragm, Sn 0.7 m, width 0.5mm

XUZDHM10

Photoelectric sensors XU, accessory for sensor, XUM, horizontal diaphragm, Sn 1.5 m, width 1mm

XUZDHM20

Photoelectric sensors XU, accessory for sensor, XUM, horizontal diaphragm, Sn 3 m, width 2mm

XUZDRM05

Photoelectric sensors XU, accessory for sensor, XUM, round diaphragm, Sn 0.08 m, width 0.5mm

XUZDRM10

Photoelectric sensors XU, accessory for sensor, XUM, round diaphragm, Sn 0.3 m, width 1mm

XUZDRM20

Photoelectric sensors XU, accessory for sensor, XUM, round diaphragm, Sn 1.2 m, width 2mm

XUZDVM05

Photoelectric sensors XU, accessory for sensor, XUM, Vertical diaphragm, Sn 1 m, width 0.5mm

XUZDVM10

Photoelectric sensors XU, accessory for sensor, XUM, Vertical diaphragm, Sn 1.5 m, width 1mm

XUZDVM20

Photoelectric sensors XU, accessory for sensor, XUM, Vertical diaphragm, Sn 3.5 m, width 2mm
