XUM2ANXBL2
光电微型接收器 XUM，穿透式，最大距离 30 米，24 伏，电缆长度 2 米，NPN，常开/常闭
COMMERCIALISED
展开全部
参数资料
Range of product
Telemecanique Photoelectric sensors XU
Sensor name
XUM
Series name
General purpose single mode
Enclosure material
PBT
Electronic sensor type
Photo-electric sensor
Sensor design
Miniature
Material
Plastic
Electrical connection
Cable
Wiring technique
3-wire
Detection system
Thru beam
Kit composition
Transmitter + receiver XUM2AKXBL2T + XUM2ANXBL2R
Emission
-
Discrete output function
1 NO or 1 NC programmable
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Type of output signal
Discrete
Supply circuit type
DC
Switching frequency
1000 Hz
Discrete output type
NPN
Delay response
0.5 MILLISECOND
Switching capacity in mA
<= 100 mA with overload and short-circuit protection
Setting-up
Sensitivity by potentiometer
Current consumption
20 mA for transmitter, 20 mA for receiver
Status LED
-
Output type
Solid state
Lens material
PMMA
Sensing range
0...30 m
Maximum voltage drop
<2 V
Delay first up
100 MILLISECOND
Delay recovery
0.5 MILLISECOND
Shock resistance
100 gn (duration = 11 ms) for for every axis conforming to IEC 60068-2-27
IP degree of protection
IP67 conforming to IEC 60529, IP65 conforming to IEC 60529
Vibration resistance
9 gn, amplitude = +/- 1.5 mm (f = 10-500 Hz)for every axis conforming to IEC 60068-2-6
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
0.984 CENTIMETER
Package 1 width
4.724 CENTIMETER
Package 1 length
4.921 CENTIMETER
Package 1 weight
0.096 KILOGRAM
Unit type of package 2
S04
Number of units in package 2
80
Package 2 height
30 CENTIMETER
Package 2 width
40 CENTIMETER
Package 2 length
60 CENTIMETER
Package 2 weight
4400 KILOGRAM
Indivisible sale quantity
1
展开全部
技术图纸
Dimensions
Dimensions
Transmitter
Dimensions
Receiver
Connection and schema
Connection and schema

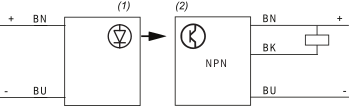

Wiring diagram
Detection curves
Detection curves
Lateral displacement
Detection curves
Light beam diameter
Detection curves
Excess gain
