XUM6APSBL5

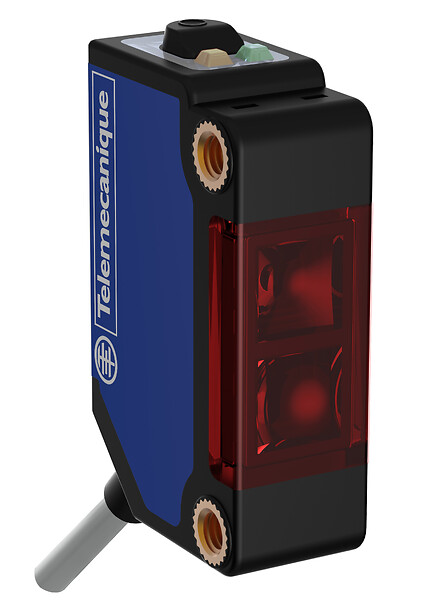

Photoelectric sensors XU, miniature, diffuse, Sn=500 mm, PNP, cable 5 m

End of commercialisation 下架日期 : 终止服务日期 :

下载PDF参数资料 EN 下载PDF参数资料 ZH 下载3D CAD文件查找经销商

特性
技术图纸
相关产品和配件

展开全部

参数资料

Range of product

Telemecanique Photoelectric sensors XU

Series name

General purpose single mode

Electronic sensor type

Photo-electric sensor

Sensor name

XUM

Sensor design

Miniature

Detection system

Diffuse

Material

Plastic

Type of output signal

Discrete

Supply circuit type

Wiring technique

3-wire

Discrete output type

PNP

Discrete output function

1 NO or 1 NC programmable

Electrical connection

Cable

Enclosure material

PBT

Lens material

Modified polyarylate

Output type

Solid state

[Us] rated supply voltage

12...24 V DC with reverse polarity protection

Switching capacity in mA

<= 100 mA with overload and short-circuit protection

Switching frequency

500 Hz

Maximum voltage drop

<2 V

Current consumption

14 mA no-load

Delay first up

100 MILLISECOND

Delay response

1 MILLISECOND

Delay recovery

1 MILLISECOND

Setting-up

Sensitivity adjustment by pushbutton

Vibration resistance

+/- 1.5 mm (f = 10-55 Hz)2 hours in each direction X, Y and Z conforming to IEC 60068-2-6

Shock resistance

500 m/s² for X, Y, Z directions for 10 cycles (approx. 100 min) conforming to IEC 60068-2-27

IP degree of protection

IP67 conforming to IEC 60529

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

16 CENTIMETER

Package 1 width

4 CENTIMETER

Package 1 length

11 CENTIMETER

Package 1 weight

99 GRAM

California proposition 65

WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

展开全部

技术图纸

Dimensions

Pre-cable Version

Pre-cable Version

(1) Output indicator (orange)
(2) Stability indicator (green)
(3) Setting pushbutton
(4) Reception
(5) Transmission

Connections and Schema

PNP

BN : Brown
BU : Blue
BK : Black

Mounting and Clearance

Tightening Torque

(1) Base mounting fixing bracket

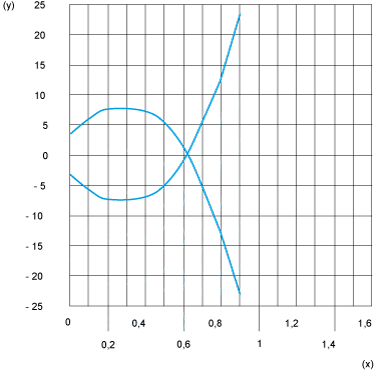

Performance Curves

Diffuse System

(y) Detection area in mm
(x) Distance in m
