XUM9APSBL2

Photoelectric sensors XU, miniature, reflex, Sn=6 m, PNP, cable 2 m

End of commercialisation 下架日期 : 终止服务日期 :

下载PDF参数资料 EN 下载PDF参数资料 ZH 下载3D CAD文件查找经销商

XUM9APSBL2 is replaced by the following product:

XUM9APXBL2

Photoelectric sensors XU, photo electric sensor, miniature, polarised, Smax=8 m, PNP, cable 2 m

Quantity : 1

特性
技术图纸
相关产品和配件

展开全部

参数资料

Range of product

Telemecanique Photoelectric sensors XU

Series name

General purpose single mode

Electronic sensor type

Photo-electric sensor

Sensor name

XUM

Sensor design

Miniature

Detection system

Polarised reflex

Material

Plastic

Type of output signal

Discrete

Supply circuit type

Wiring technique

3-wire

Discrete output type

PNP

Discrete output function

1 NO or 1 NC programmable

Electrical connection

Cable

Emission

Enclosure material

PBT

Lens material

PMMA

Status LED

Output type

Solid state

[Us] rated supply voltage

12...24 V DC with reverse polarity protection

Switching capacity in mA

<= 100 mA with short-circuit protection

Switching frequency

500 Hz

Maximum voltage drop

<2 V

Current consumption

30 mA no-load

Delay first up

300 MILLISECOND

Delay response

1 MILLISECOND

Setting-up

Sensitivity by potentiometer

Vibration resistance

+/-0.5 mm (f = 10-55 Hz)for every axis conforming to IEC 60068-2-6

Shock resistance

30 gn for for every axis conforming to IEC 60068-2-27

IP degree of protection

IP67 conforming to IEC 60529, IP54 conforming to IEC 60529

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

2 CENTIMETER

Package 1 width

10.5 CENTIMETER

Package 1 length

10.5 CENTIMETER

Package 1 weight

55 GRAM

Unit type of package 2

S02

Number of units in package 2

Package 2 height

15 CENTIMETER

Package 2 width

30 CENTIMETER

Package 2 length

40 CENTIMETER

Package 2 weight

3.667 KILOGRAM

California proposition 65

WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

展开全部

技术图纸

Dimensions

Pre-cable Version

Pre-cable Version

(1) Output indicator (orange)
(2) Stability indicator (green)
(3) Setting pushbutton
(4) Reception
(5) Transmission

Connections and Schema

PNP

BN : Brown
BU : Blue
BK : Black

Mounting and Clearance

Tightening Torque

(1) Base mounting fixing bracket

Performance Curves

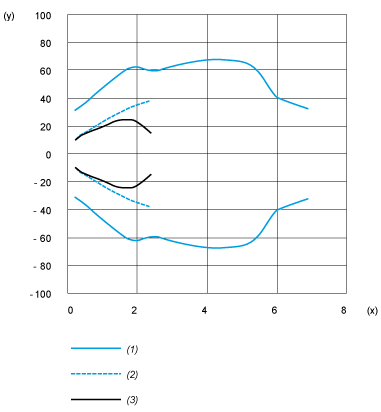

Polarised Reflex System

(1) With XUZC50 reflector
(2) With XUZC08 reflector (horizontally placed)
(3) With XUZC08 reflector (vertically placed)
(y) Parallel movement in mm
(x) Distance in m

Polarised Reflex System

(1) With XUZC50 reflector
(2) With XUZC08 reflector (horizontally placed)
(3) With XUZC08 reflector (vertically placed)
(y) Parallel movement in mm
(x) Distance in m
(4) Sensor
(5) Reflector

Polarised Reflex System

(1) With XUZC50 reflector
(2) With XUZC08 reflector (horizontally placed)
(3) With XUZC08 reflector (vertically placed)
(y) Parallel movement in mm
(x) Distance in m
(4) Sensor
(5) Reflector
(4) Sensor
(5) Reflector
