XMLB300D2S12EX

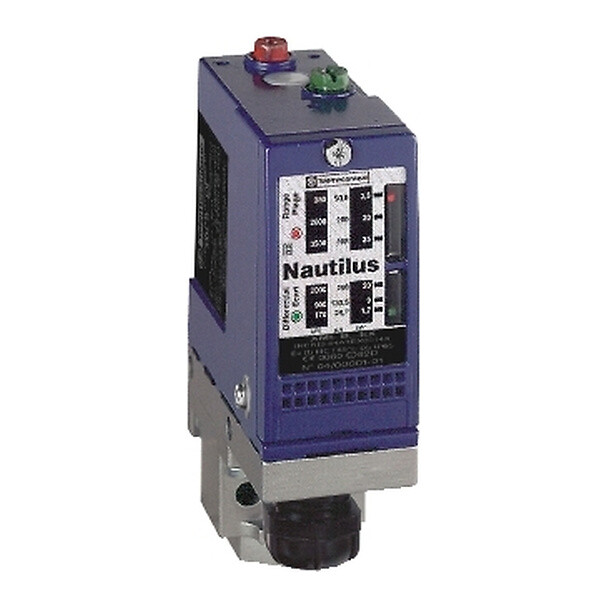

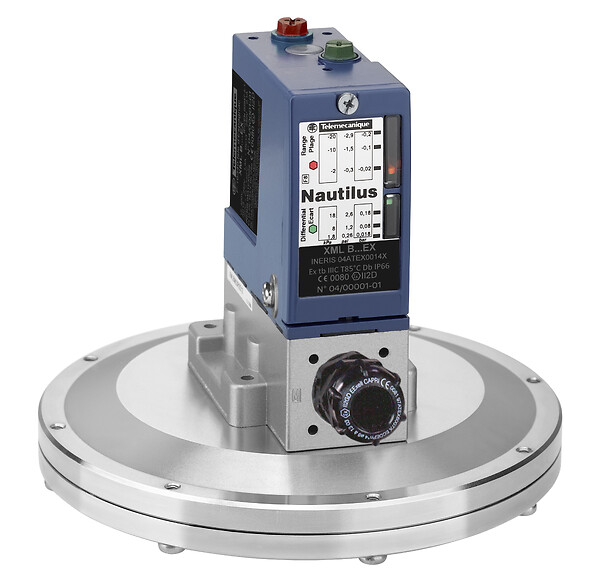

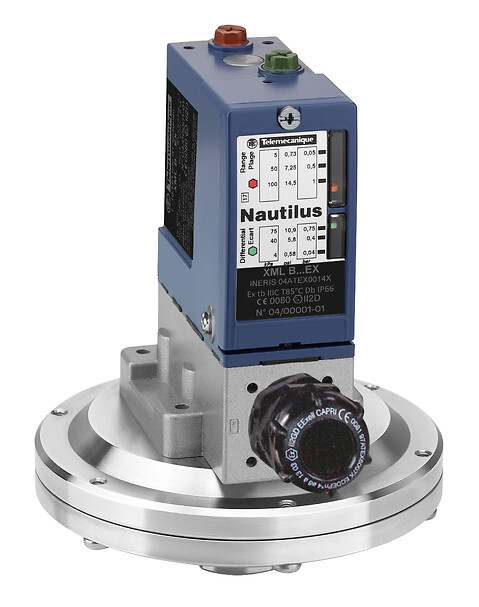

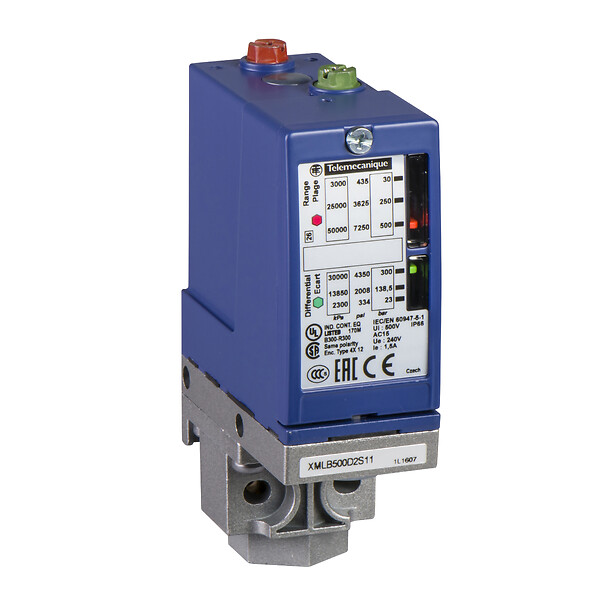

Pressure switch, XMLB, pressure range 300 bar, adjustable scale, 1CO, 2 thresholds

arrow

COMMERCIALISED

Download pdf datasheet Download 3d cad file Find a distributor

Expand all

Datasheet

Range of product
Telemecanique Pressure sensors XM
Pressure sensor type
Electromechanical pressure sensor
Pressure sensor name
XMLB
Product specific application
ATEX D
ETIM classification
ETIM 9 - EC000243 - Pressure switch
Enclosure material
Zinc alloy
Materials in contact with fluid
Brass
FPM, FKM
PTFE
steel
Pressure switch type of operation
Regulation between 2 thresholds
Operating position
Any position
Pressure sensor size
300 Bar
Maximum permissible accidental pressure
675 Bar
Maximum permissible pressure - per cycle
375 Bar
Destruction pressure
1350 Bar
Pressure actuator
Piston
Possible differential maximum at high setting
200 Bar
Controlled fluid
Hydraulic oil (0-70 °C), air (0-70 °C), water (0-70 °C)
Fluid connection type
G 1/4 (female) conforming to ISO 228
Local display
With
Scale type
Adjustable differential
Setting
External
Product certifications
IEC-Ex INE 17.0019
INERIS 04ATEX0058
Marking
II2 D-Ex tb IIIC T85°C Db IP66
Directives
2014/34/EU - ATEX directive
Standards
EN/IEC 60079-0
EN/IEC 60079-31
Indivisible sale quantity
1
Mechanical durability
3000000 cycles
Cable entry number
1 tapped entry for M20 x 1.5 cable gland (included)
Repeat accuracy
2 %
Electrical circuit type
Control circuit
Contacts material
Silver contacts
Terminals description ISO n°1
(13-14-11-12)OF
Auxiliary contacts operation
Snap action
Terminal block type
4 terminals
Height
113 mm
Width
35 mm
Depth
75 mm
Ambient air temperature for operation
-20…60 °C
Protective treatment
TC
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Country of origin
FR (France)
Unit type of package 1
PCE
Number of units in package 1
1
New Package 1 GTIN-13
3666916024867
Package 1 height
7.1 cm
Package 1 width
10.2 cm
Package 1 length
15.1 cm
Package 1 weight
0.766 kg
Unit type of package 2
S01
Number of units in package 2
2
New Package 2 GTIN 14
13666916024864
Package 2 height
15 cm
Package 2 width
15 cm
Package 2 length
40 cm
Package 2 weight
1.757 kg
Unit type of package 3
CAR
Number of units in package 3
1
New Package 3 GTIN 14
23666916024861
Package 3 height
15.1 cm
Package 3 width
7.1 cm
Package 3 length
10.2 cm
Package 3 weight
0.766 kg

Expand all

Technical Drawings

Dimensions

epds
  • (1) 1 fluid entry, tapped G1/4 (BSP female)
  • (2) 1 electrical connections entry, tapped M20 x 1.5
  • Ø : 2 elongated holes Ø 5.2 x 6.7

Wiring Diagram

Terminal Model

epds

Operating Curves

epds
  • (y) Rising pressure
  • (x) Falling pressure
  • 1 : Maximum differential
  • 2 : Minimum differential
epds
  • (y) Rising pressure
  • (x) Falling pressure
  • 1 : Maximum differential
  • 2 : Minimum differential
  • (y) Pressure
  • (x) Time
  • (1) Adjustable value
  • PH : High point
  • PB : Below point
