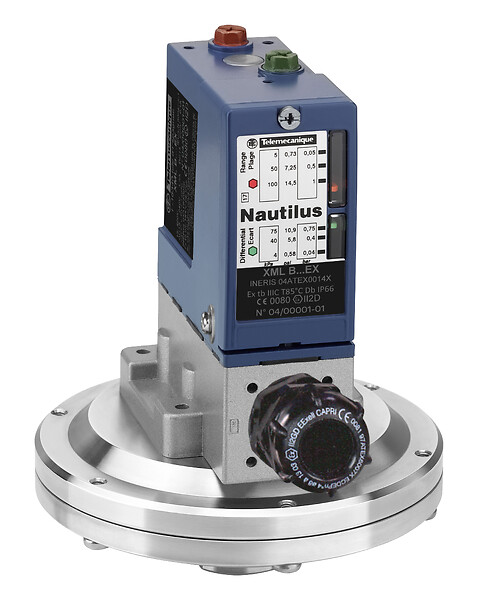

XMLBL35R2S12EX
Pressure switch, XMLB, pressure range 350 mbar, adjustable scale, 1CO, 2 thresholds
END OF COMMERCIALISATION End of commercialization date : December 08th 2022 End of service date : December 08th 2022
Expand all
Datasheet
Range of product
Telemecanique Pressure sensors XM
Pressure sensor type
Electromechanical pressure sensor
Pressure sensor name
XMLB
Product specific application
ATEX D
ETIM classification
ETIM 9 - EC000243 - Pressure switch
Enclosure material
Zinc alloy
Materials in contact with fluid
FPM, FKM
stainless steel
steel
stainless steel
steel
Pressure switch type of operation
Regulation between 2 thresholds
Operating position
Any position
Pressure sensor size
0.35 Bar
Maximum permissible accidental pressure
2.25 Bar
Maximum permissible pressure - per cycle
1.25 Bar
Destruction pressure
4.5 Bar
Pressure actuator
Diaphragm
Possible differential maximum at high setting
0.3 Bar
Controlled fluid
Air (0-70 °C), hydraulic oil (0-70 °C)
Fluid connection type
G 1/4 (female) conforming to ISO 228
Local display
With
Scale type
Adjustable differential
Setting
External
Product certifications
IEC-Ex INE 17.0019
INERIS 04ATEX0058
INERIS 04ATEX0058
Marking
II2 D-Ex tb IIIC T85°C Db IP66
Directives
2014/34/EU - ATEX directive
Standards
EN/IEC 60079-0
EN/IEC 60079-31
EN/IEC 60079-31
Mechanical durability
4000000 cycles
Cable entry number
1 tapped entry for M20 x 1.5 cable gland (included)
Repeat accuracy
2 %
Electrical circuit type
Control circuit
Contacts material
Silver contacts
Terminals description ISO n°1
(13-14-11-12)OF
Auxiliary contacts operation
Snap action
Terminal block type
4 terminals
Height
162 mm
Width
110 mm
Depth
110 mm
Ambient air temperature for operation
-20…60 °C
Protective treatment
TC
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Country of origin
FR (France)
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
16 cm
Package 1 width
15.5 cm
Package 1 length
15.5 cm
Package 1 weight
2.567 kg
Expand all
Technical Drawings
Dimensions
- Ø a = 110 mm / 4.33 in.
- (1) 1 fluid entry, tapped G1/4 (BSP female)
- (2) 1 electrical connections entry, tapped M20 x 1.5
Wiring Diagram
Terminal Model
Operating Curves
- (y) Rising pressure
- (x) Falling pressure
- 1 : Maximum differential
- 2 : Minimum differential
- (y) Rising pressure
- (x) Falling pressure
- 1 : Maximum differential
- 2 : Minimum differential
- (y) Pressure
- (x) Time
- (1) Adjustable value
- PH : High point
- PB : Below point
