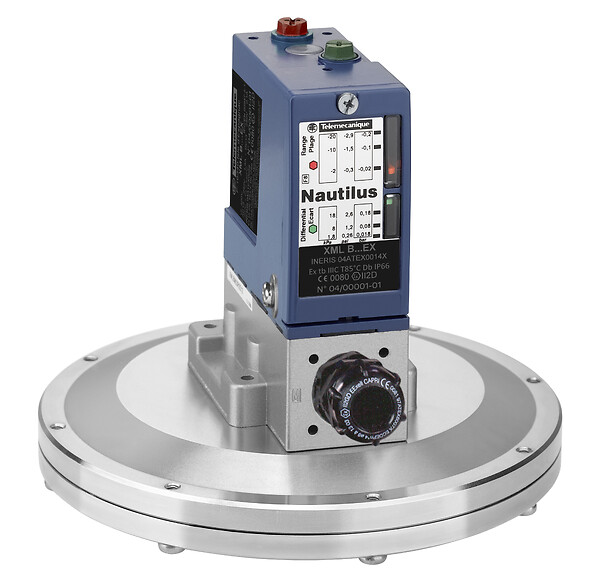

XMLBM03R2S12EX
Pressure switch, XMLB, pressure range 200 mbar, adjustable scale, 1CO, 2 thresholds, for vacuum
END OF COMMERCIALISATION End of commercialization date : December 08th 2022 End of service date : December 08th 2022
Expand all
Datasheet
Range of product
Telemecanique Pressure sensors XM
Pressure sensor type
Electromechanical vacuum sensor
Product specific application
ATEX D
Pressure sensor name
XMLB
Electrical circuit type
Control circuit
Pressure switch type of operation
Regulation between 2 thresholds
Scale type
Adjustable differential
Local display
With
Fluid connection type
G 1/4 (female) conforming to ISO 228
Pressure actuator
Diaphragm
Controlled fluid
Air (0-70 °C), hydraulic oil (0-70 °C)
Materials in contact with fluid
FPM, FKM
stainless steel
steel
stainless steel
steel
Enclosure material
Zinc alloy
Terminal block type
4 terminals
Auxiliary contacts operation
Snap action
Contacts material
Silver contacts
Setting
External
Terminals description ISO n°1
(13-14-11-12)OF
Standards
EN/IEC 60079-0
EN/IEC 60079-31
EN/IEC 60079-31
Directives
2014/34/EU - ATEX directive
Product certifications
IEC-Ex INE 17.0019
INERIS 04ATEX0058
INERIS 04ATEX0058
Marking
II2 D-Ex tb IIIC T85°C Db IP66
Protective treatment
TC
Operating position
Any position
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
15.4 CENTIMETER
Package 1 width
15.5 CENTIMETER
Package 1 length
15.5 CENTIMETER
Package 1 weight
3.9 KILOGRAM
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings

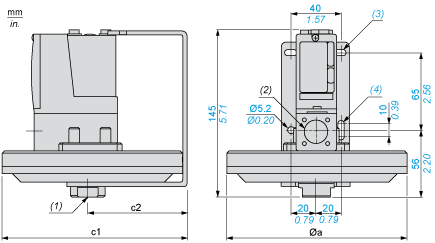

Dimensions
- Ø a = 150
- c1 = 155.5
- c2 = 80.5
- (1) 1 fluid entry, tapped G1/4 (BSP female)
- (2) 1 electrical connections entry, tapped M20 x 1.5
- (3) 2 elongated holes Ø 10.2 x 5.2
- (4) 1 elongated hole Ø 15.2 x 5.2
Wiring Diagram
Terminal Model

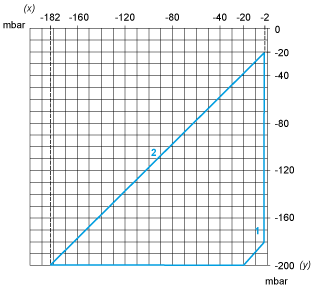

Operating Curves
- (x) Rising pressure
- (y) Falling pressure
- 1 : Maximum differential
- 2 : Minimum differential
- (x) Rising pressure
- (y) Falling pressure
- 1 : Maximum differential
- 2 : Minimum differential
- (x) Time
- (y) Vacuum
- (1) Adjustable value
- PH : High point
- PB : Below point
