Electronic pressure sensors, Pressure sensors XM, vacuum transmitter -1 bar, 4...20 mA, G1/4 A male, FPM, M12
Commercialised
Expand all
Datasheet
Range of product
Telemecanique Pressure sensors XM
Product or component type
Electronic pressure sensors
Pressure sensor type
Pressure transmitter
Pressure sensor name
XMLP
Electrical circuit type
Control circuit
Local display
Without
Controlled fluid
Fresh water (0-125 °C), air (-15-125 °C), gas (-15-125 °C), hydraulic oil (-15-125 °C)
Fluid connection type
G 1/4A (male) conforming to DIN 3852-E
Electrical connection
1 male connector M12 4 pins
[Us] rated supply voltage
12...24 V DC SELV (voltage limits: 7-33 V)
Current consumption
< 23 mA
Type of output signal
Analogue
Analogue output function
4...20 mA, 2-wire
Quantity per set
Set of 1
Type of packing
Individual
Materials in contact with fluid
Ceramic
fluorocarbon FPM
stainless steel AISI 316L
fluorocarbon FPM
stainless steel AISI 316L
Operating position
Any position
Protection type
Load short-circuit
reverse polarity
reverse polarity
Electromagnetic compatibility
Susceptibility to electromagnetic fields conforming to IEC 61000-4-3 10 V/m 80...1000 MHz, radiated RF fields conforming to IEC 61000-4-6 10 V 0.15...80 MHz, electrostatic discharge immunity test conforming to IEC 61000-4-2 8 kV air, 4 kV contact, 1.2/50 µs shock waves immunity test conforming to IEC 61000-4-5 1 kV 42 Ohm, immunity to magnetic fields conforming to IEC 61000-4-8 100 A/m 50 Hz, electrical fast transient/burst immunity test conforming to IEC 61000-4-4 4 kV
Response time on output
<= 2 ms 10...90 % of full scale
Measurement accuracy
+/- 0,5 % de la plage de mesure
Accuracy
0.1 % of the measuring range
Drift of the sensitivity
+/- 0,02 % of measuring range/°K
Drift of the zero point
+/- 0,02 % of measuring range/°K
Repeat accuracy
+/- 0,25 % de la plage de mesure
Standards
IEC 61326-2-3
NSF ANSI 61
NSF ANSI 61
Product certifications
CE
cULus
RCM
cULus
RCM
Vibration resistance
20 gn (f = 10-2000 Hz) conforming to IEC 60068-2-6
Shock resistance
100 gn for 11 ms conforming to IEC 60068-2-27
IP degree of protection
IP65 conforming to IEC 60529, IP67 conforming to IEC 60529, IP69K conforming to DIN 40050
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S01
Number of units in package 2
24
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
2.1 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
- (1) SW24 tightening torque ≤ 25 N.m / 221 lb-in
Connection and Schema
Wiring Diagram
- (a) I out

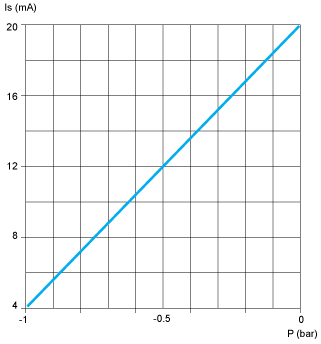

Performance Curves
