XY2CZ9325

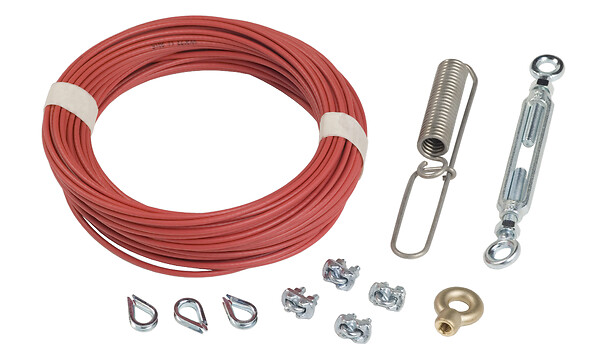

Telemecanique emergency stop rope pull switches XY2C, mounting kit, Ø 3.2 mm, L 25.5 m, for rope pull switch
Commercialized
Expand all
Datasheet
Range of product
Telemecanique Emergency stop rope pull switches XY2C
Accessory / separate part type
Mounting kit
Accessory / separate part category
Mounting and fixing accessories
Product compatibility
XY2CH
Accessory / separate part destination
Emergency stop rope pull switch
Kit composition
1 x galvanised cable
1 x cable support XY2CZ601
1 x end spring XY2CZ702
1 x turnbuckle XY2CZ404
3 x cable end protector XY2CZ701
4 x cable grip XY2CZ523
1 x cable support XY2CZ601
1 x end spring XY2CZ702
1 x turnbuckle XY2CZ404
3 x cable end protector XY2CZ701
4 x cable grip XY2CZ523
Cable outer diameter
3.2 mm
Cable length
25.5 m
Net weight
10 kg
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
8.500 cm
Package 1 Width
19.800 cm
Package 1 Length
20.500 cm
Package 1 Weight
1.371 kg
Unit Type of Package 2
S02
Number of Units in Package 2
4
Package 2 Height
15.000 cm
Package 2 Width
30.000 cm
Package 2 Length
40.000 cm
Package 2 Weight
5.750 kg
Sustainable offer status
Green Premium product
REACh Regulation
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury free
Yes
RoHS exemption information
Circularity Profile
No need of specific recycling operations
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
