XU2M18AP20D

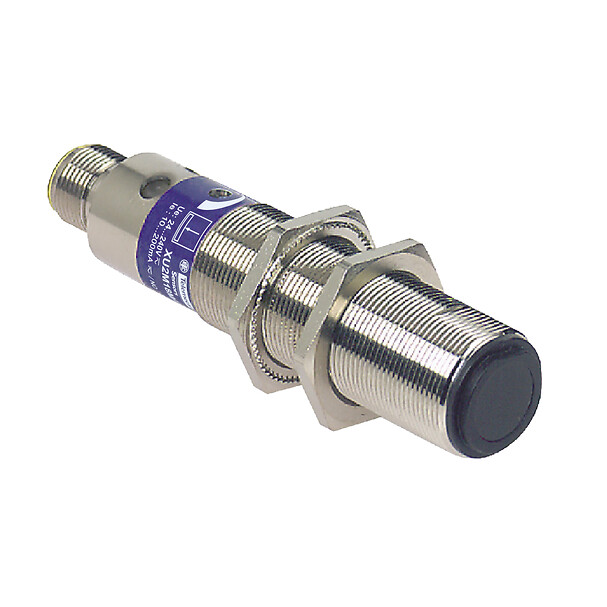

Photoelectric sensor XU2, thru-beam, Sn 50 m, 12...24 VDC, M12
END OF COMMERCIALISATION
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Series name
Application material handling
Sensor name
XU2
Electronic sensor type
Photo-electric sensor
Sensor design
Cylindrical M18
Kit composition
Transmitter + receiver
Product specific application
Not applicable
ETIM classification
ETIM 9 - EC002716 - Through beam photoelectric sensor
Material
Metal
Lens material
PMMA
Enclosure material
Nickel plated brass

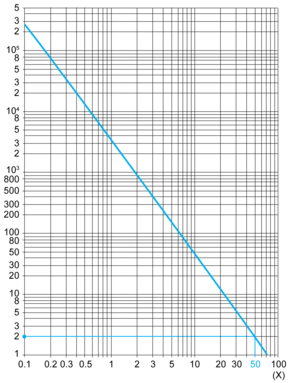

[Sn] nominal sensing distance
50-50 m thru beam
Maximum sensing distance
70 m
Wiring technique
3-wire
Diameter
18 mm
Detection system
Thru beam
Line of sight type
Axial
Delay response
15 ms
Product certifications
CE
CSA
UL
CSA
UL
Range compatibility
TE PHOTOELEC SSRS XU
Indivisible sale quantity
1
Sensing range
> 30 m
Electrical connection
1 male connector M12, 4 pins
Supply voltage limits
10-30 V DC
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Supply circuit type
DC
Switching capacity in mA
<= 100 mA (overload and short-circuit protection)
Maximum voltage drop
<1.5 V (closed state)
Current consumption
<= 55 mA no-load
Emission
Infrared thru beam
Setting-up
Sensitivity adjustment
Output type
Solid state

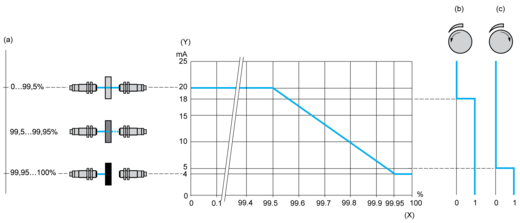

Analogue output range
4...20 mA
Type of output signal
Analogue
discrete
discrete
Add on output
With analogue output
Discrete output type
PNP
Discrete output function
1 NO
Switching frequency
<= 30 Hz
Status LED
1 LED (green) for supply on, 1 LED (yellow) for operation
Delay first up
50 ms
Delay recovery
15 ms
Length
95 mm
Product weight
0.155 kg
IP degree of protection
IP67 conforming to IEC 60529
Ambient air temperature for operation
-25…55 °C
Ambient air temperature for operation
-25-55 °C
Ambient air temperature for storage
-40…70 °C
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
Vibration resistance
25 gn, amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Country of origin
FR (France)
Unit type of package 1
PCE
Number of units in package 1
1
New Package 1 GTIN-13
3666916037300
Package 1 height
4.1 cm
Package 1 width
9.4 cm
Package 1 length
13 cm
Package 1 weight
0.16 kg
Unit type of package 2
S02
Number of units in package 2
22
New Package 2 GTIN 14
13666916037307
Package 2 height
15 cm
Package 2 width
30 cm
Package 2 length
40 cm
Package 2 weight
3.843 kg
Unit type of package 3
CAR
Number of units in package 3
1
New Package 3 GTIN 14
23666916037304
Package 3 height
13 cm
Package 3 width
4.1 cm
Package 3 length
9.4 cm
Package 3 weight
0.16 kg
