XUZA218

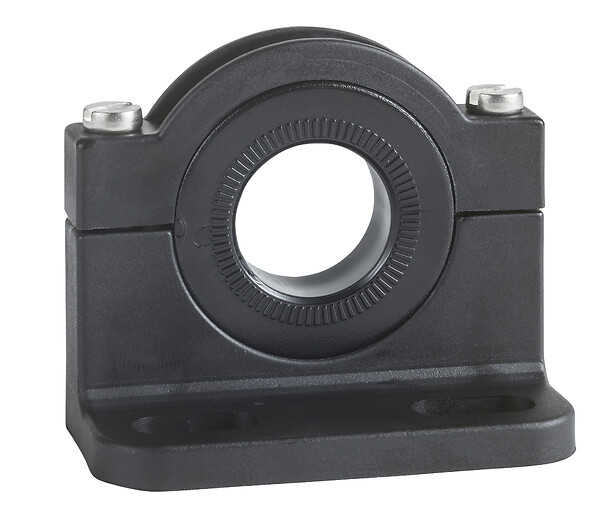

Adjustable fixing clamp with ball joint, Photoelectric sensors XU, accessory for sensor, Ø 18 mm, bracket plastic

arrow

COMMERCIALISED

Download pdf datasheet Download 3d cad file Find a distributor

Expand all

Datasheet

Range of product
Telemecanique Photoelectric sensors XU
Accessory / separate part type
Fixing bracket
Accessory / separate part category
Mounting and fixing accessory
Material
Plastic
Fixing mode
-
Accessory / separate part destination
sensor Ø 18 mm
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
3.1 CENTIMETER
Package 1 width
7.1 CENTIMETER
Package 1 length
10.7 CENTIMETER
Package 1 weight
0.032 KILOGRAM
Unit type of package 2
S01
Number of units in package 2
20
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
3.555 KILOGRAM
Unit type of package 3
S02
Number of units in package 3
100
Package 3 height
15 CENTIMETER
Package 3 width
30 CENTIMETER
Package 3 length
40 CENTIMETER
Package 3 weight
3.555 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Expand all

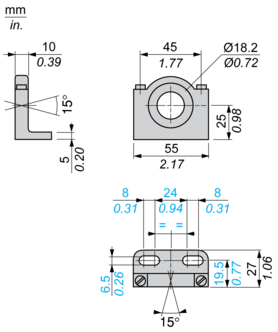

Technical Drawings

Dimensions

epds
