XUB0SPSNL2

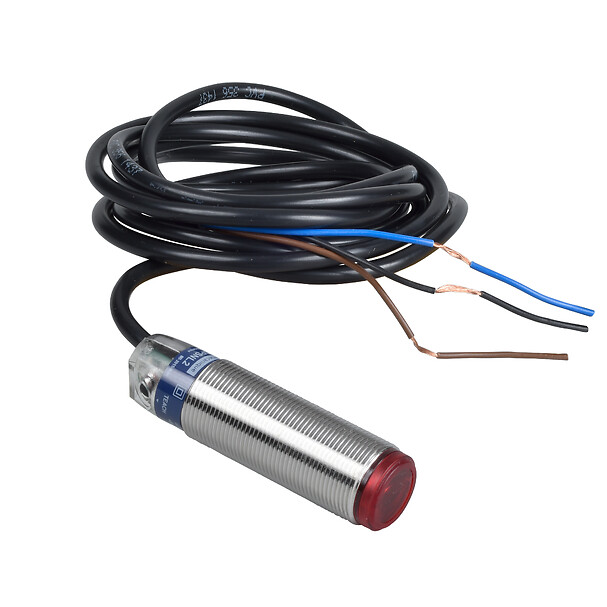

Photoelectric sensors XU, XUB, multi, Sn 0...20 m, 12...24 VDC, cable 2 m
Commercialised
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Series name
Application food and beverage mutlimode
Electronic sensor type
Photo-electric sensor
Sensor name
XUB
Sensor design
Cylindrical M18
Detection system
Multimode
Material
Stainless steel
Line of sight type
Axial
Type of output signal
Discrete
Supply circuit type
DC
Wiring technique
3-wire
Discrete output type
PNP
Discrete output function
1 NO or 1 NC programmable
Electrical connection
Cable
Product specific application
Not applicable
Emission
Infrared diffuse, infrared diffuse with background suppression, infrared thru beam, red polarised reflex
Enclosure material
Stainless steel : 304 CU
Lens material
PMMA
Output type
Solid state
Status LED
1 LED (green) for output state, 1 LED (red) for supply on, 1 LED (yellow) for stability
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Switching capacity in mA
<= 100 mA (overload and short-circuit protection)
Switching frequency
250 Hz
Maximum voltage drop
<1.5 V (closed state)
Current consumption
35 mA no-load
Delay first up
200 MILLISECOND
Delay response
2 MILLISECOND
Delay recovery
2 MILLISECOND
Setting-up
Self-training
Vibration resistance
7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection
IP65 double insulation conforming to IEC 60529, IP67 double insulation conforming to IEC 60529, IP69K double insulation conforming to DIN 40050
Unit type of package 1
PCE
Number of units in package 1
1
Package 2 height
4.2 CENTIMETER
Package 2 width
9.6 CENTIMETER
Package 2 length
13.2 CENTIMETER
Package 2 weight
131.5 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
Wiring Schemes
PNP
Detection Curves
With Thru-beam Accessory (Thru-beam)
Detection Curves
Without Accessory (Diffuse)
Detection Curves
Without Accessory (Diffuse with Background. Suppression
Detection Curves
With Reflector XUZC50 (Polarised Reflex)
Detection Curves
Variation of Usable Sensing Distance Su (Without Accessory, with Adjustable Background Suppression)
Variation of Usable Sensing Distance Su (Without Accessory, with Adjustable Background Suppression)
Expand all
Documents & Downloads
Document name
Date
Size
2024-02-07
36119819
Document name
Date
Size
2025-05-16
453050
2025-05-19
400559
Document name
Date
Size
2024-06-28
191953
Document name
Date
Size
2025-03-18
229585
Expand all
Related products & accessories
XUZA118
90° fixing bracket, Photoelectric sensors XU, accessory for sensor, Ø 18 mm, stainless steel
XUZA218
Adjustable fixing clamp with ball joint, Photoelectric sensors XU, accessory for sensor, Ø 18 mm, bracket plastic

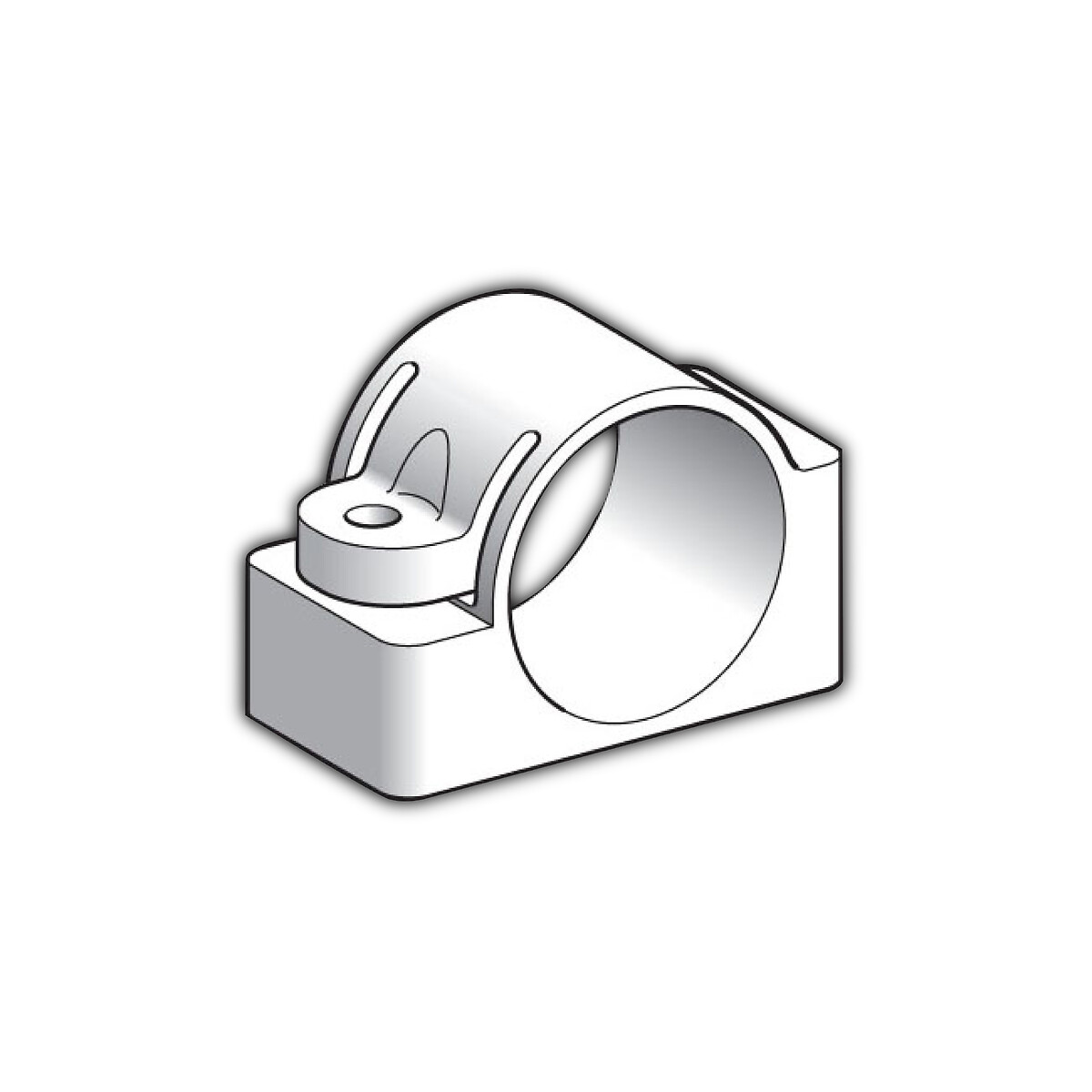

XUZB2005
