XUBLAPCNL2

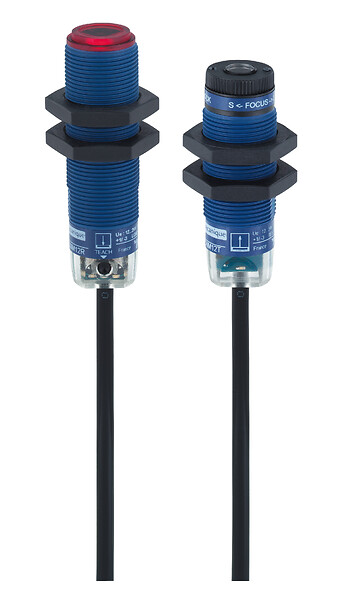

Photoelectric sensor XUB, plastic, thru-beam, laser, Sn 100 m, 12...24 VDC, cable 2 m, PNP, NO/NC
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Series name
Application material handling
Sensor name
XUB
Electronic sensor type
Photo-electric sensor
Sensor design
Cylindrical M18
Kit composition
Transmitter + receiver XUBLAKCNL2T + XUBLAPCNL2R
ETIM classification
ETIM 9 - EC002716 - Through beam photoelectric sensor
Material
Plastic
Lens material
PMMA
Enclosure material
PBT
[Sn] nominal sensing distance
100-100 m
Wiring technique
3-wire
Detection system
Thru beam
Delay response
0.4 ms
Indivisible sale quantity
1
Sensing range
> 30 m
Electrical connection
Cable
Cable length
2 m
Supply voltage limits
10-30 V DC
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Supply circuit type
DC
Switching capacity in mA
<= 100 mA (overload and short-circuit protection)
Voltage drop
<1.5 V (closed state)
Current consumption
25 mA no-load
Emission
Red laser class 1 670 nm conforming to IEC 825-1
Setting-up
With sensitivity adjustment
Status LED
-
Output type
Solid state
Type of output signal
Discrete
Discrete output type
PNP
Discrete output function
1 NO or 1 NC programmable
Blind zone
0 mm
Delay first up
80 ms
Delay recovery
0.4 ms
Product weight
0.18 kg
IP degree of protection
IP67 conforming to IEC 60529 (double insulation)
Ambient air temperature for storage
-40…70 °C
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
Vibration resistance
7 gn, amplitude = +/- 0.75 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Country of origin
FR (France)
Unit type of package 1
PCE
Number of units in package 1
1
New Package 1 GTIN-13
3666916032817
Package 1 height
3.6 cm
Package 1 width
7 cm
Package 1 length
13 cm
Package 1 weight
0.18 kg
Unit type of package 2
S01
Number of units in package 2
15
New Package 2 GTIN 14
13666916032814
Package 2 height
15 cm
Package 2 width
15 cm
Package 2 length
40 cm
Package 2 weight
2.545 kg
New Package 3 GTIN 14
23666916032811
Expand all
Technical Drawings
Dimensions
Dimensions

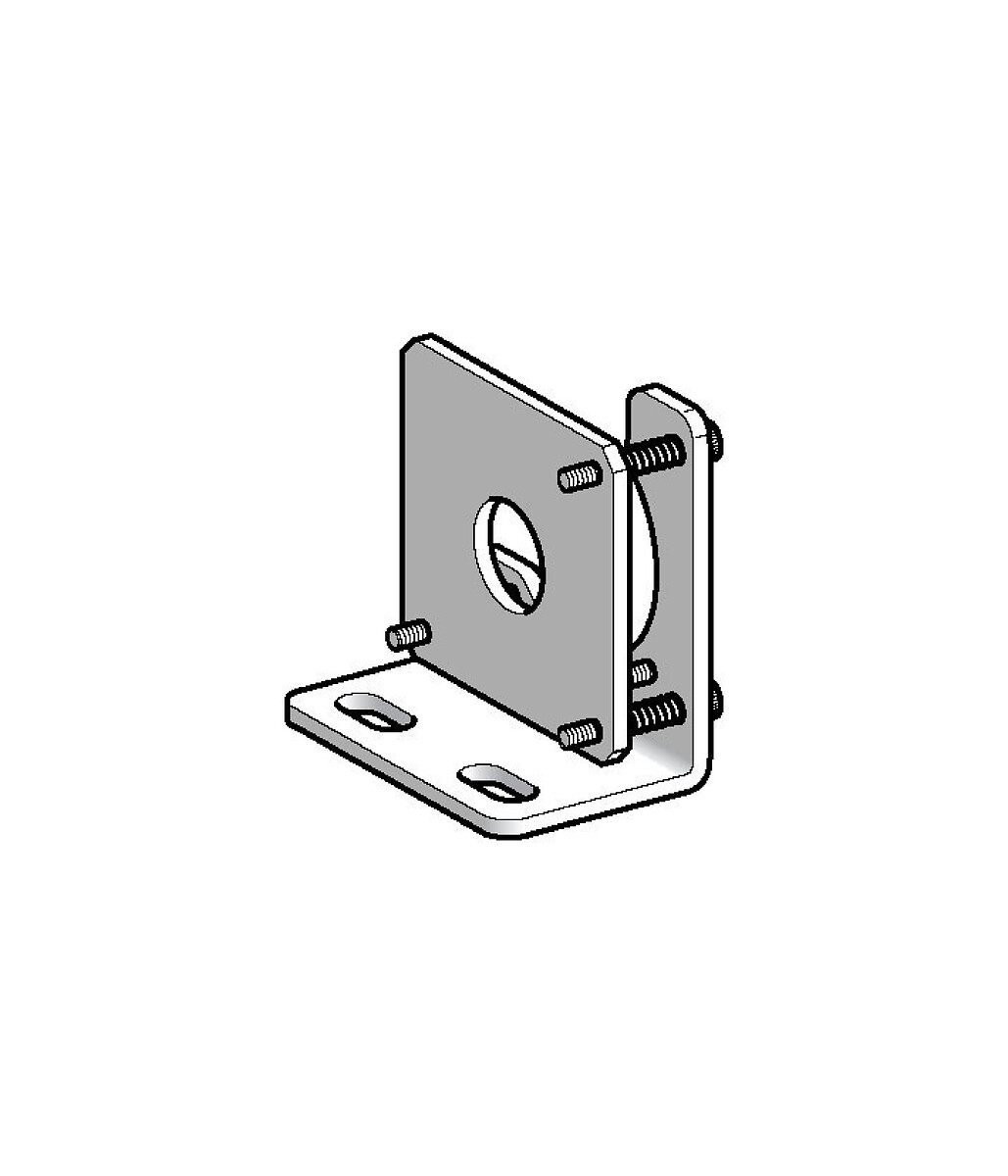

Mounting
Adjustment
- (1) Adjust the focusing point of the laser beam by rotating the serrated sleeve
- (2) Located on the face of the sensor. Re-tighten fixing screws
Wiring Schemes
PNP
Wiring Schemes
Transmitter
- (+) BN : Brown
- (-) BU : Blue
- (Output) BK : Black
- Input 2/VI : Not connected: beam made, connected to (-): beam broken
Curves
Detection Curve (Set to Infinity)
Curves

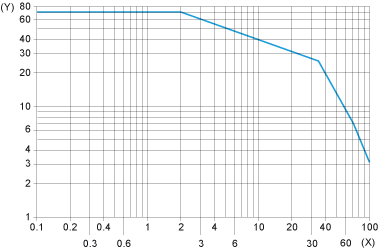

Excess Gain Curve
- (X) Distance (m)
- (Y) Gain
Curves

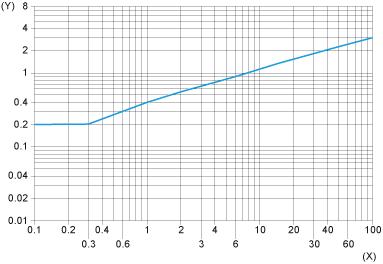

Standard Curve
- (X) Distance (m)
- (Y) Gain
- (X) Distance focusing point (m)
- (Y) Minimum size of the object to be detected (mm)
Curves

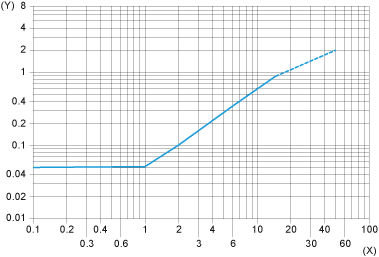

Detection Limit Curve
- (X) Distance (m)
- (Y) Gain
- (X) Distance focusing point (m)
- (Y) Minimum size of the object to be detected (mm)
- (X) Distance focusing point (m)
- (Y) Minimum size of the object to be detected (mm)
Expand all
Documents & Downloads
Document name
Date
Size
2024-02-07
35820728
Document name
Date
Size
2026-08-20
280322
2026-04-14
109942
2026-04-14
108803
Document name
Date
Size
2024-06-28
211467
Document name
Date
Size
2026-06-19
278070
2026-06-19
83241
