XUBLAPCNL2R

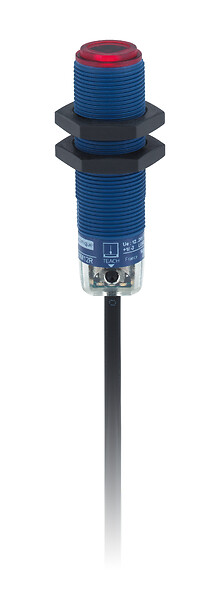

Photoelectric receiver XUB, plastic, thru-beam, laser, Sn 100 m, 12...24 VDC, cable 2 m, PNP

END OF COMMERCIALISATION

Download pdf datasheet Download 3d cad file Find a distributor

XUBLAPCNL2R is replaced by the following product:

XUBLAPCNL2

Quantity :  1

Expand all

Datasheet

Range of product
Telemecanique Photoelectric sensors XU
Series name
Application material handling
Sensor name
XUB
Electronic sensor type
Photo-electric sensor receiver
Sensor design
Cylindrical M18
Product specific application
Not applicable
ETIM classification
ETIM 9 - EC002716 - Through beam photoelectric sensor
Material
Plastic
Lens material
PMMA
Enclosure material
PBT
[Sn] nominal sensing distance
0-100 m thru beam need a transmitter XUBLAKCNL2T
Wiring technique
3-wire
Diameter
18 mm
Detection system
Thru beam
Delay response
0.4 ms
Sensing range
> 30 m
Electrical connection
Cable
Cable length
2 m
Supply voltage limits
10-30 V DC
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Supply circuit type
DC
Switching capacity in mA
<= 100 mA (overload and short-circuit protection)
Maximum voltage drop
<1.5 V (closed state)
Current consumption
25 mA no-load
Emission
Red laser thru beam class 1 670 nm conforming to IEC 60825-1
Output type
Solid state
Type of output signal
Discrete
Discrete output type
PNP
Discrete output function
1 NO or 1 NC programmable
Status LED
1 LED (green) for supply on, 1 LED (yellow) for output state, 1 LED (red) for stability
Delay first up
80 ms
Delay recovery
0.4 ms
Length
62 mm
Product weight
0.09 kg
IP degree of protection
IP67 double insulation conforming to IEC 60529
Ambient air temperature for storage
-40…70 °C
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
Vibration resistance
7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
3.6 cm
Package 1 width
7 cm
Package 1 length
13 cm
Package 1 weight
0.09 kg

Expand all

Technical Drawings

Dimensions

epds

Wiring Schemes

PNP

epds
  • (+) BN : Brown
  • (-) BU : Blue
  • (Output) BK : Black

Curves

Detection Curve (Set to Infinity)

epds

Curves

Excess Gain Curve

epds
  • (X) Distance (m)
  • (Y) Gain

Curves

Standard Curve

epds
  • (X) Distance (m)
  • (Y) Gain
  • (X) Distance focusing point (m)
  • (Y) Minimum size of the object to be detected (mm)

Curves

Detection Limit Curve

epds
  • (X) Distance (m)
  • (Y) Gain
  • (X) Distance focusing point (m)
  • (Y) Minimum size of the object to be detected (mm)
  • (X) Distance focusing point (m)
  • (Y) Minimum size of the object to be detected (mm)
