XUBLBPCNL2

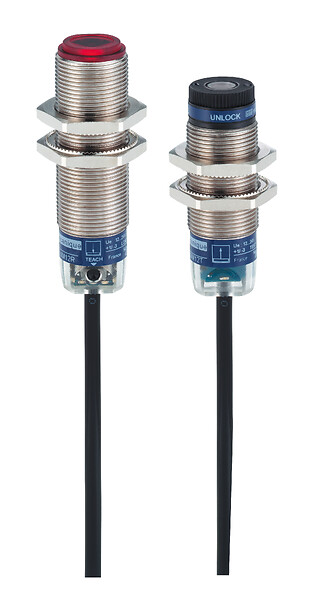

Photoelectric sensors XU, XUB, thru beam, laser, Sn 100 m, 12...24 VDC, cable 2 m
Commercialised
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Series name
Application material handling
Electronic sensor type
Photo-electric sensor
Sensor name
XUB
Sensor design
Cylindrical M18
Detection system
Thru beam
Material
Metal
Type of output signal
Discrete
Supply circuit type
DC
Wiring technique
3-wire
Discrete output type
PNP
Discrete output function
1 NO or 1 NC programmable
Electrical connection
Cable
Emission
Red laser class 1 670 nm conforming to IEC 825-1
Enclosure material
Nickel plated brass
Lens material
PMMA
Output type
Solid state
Status LED
-
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Switching capacity in mA
<= 100 mA (overload and short-circuit protection)
Voltage drop
<1.5 V (closed state)
Current consumption
25 mA no-load
Maximum power consumption in W
-
Delay first up
80 MILLISECOND
Delay response
0.4 MILLISECOND
Setting-up
With sensitivity adjustment
Delay recovery
0.4 MILLISECOND
Kit composition
Transmitter + receiver XUBLBKCNL2T + XUBLBPCNL2R
Vibration resistance
7 gn, amplitude = +/- 0.75 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection
IP67 conforming to IEC 60529 (double insulation)
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S01
Number of units in package 2
15
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
3.303 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
Dimensions
Mounting
Adjustment
- (1) Adjust the focusing point of the laser beam by rotating the serrated sleeve
- (2) Located on the face of the sensor. Re-tighten fixing screws
Wiring Schemes
PNP
Wiring Schemes
Transmitter
- (+) BN : Brown
- (-) BU : Blue
- (Output) BK : Black
- Input 2/VI : Not connected: beam made, connected to (-): beam broken
Curves
Detection Curve (Set to Infinity)
Curves
Excess Gain Curve
- (X) Distance (m)
- (Y) Gain
Curves
Standard Curve
- (X) Distance (m)
- (Y) Gain
- (X) Distance focusing point (m)
- (Y) Minimum size of the object to be detected (mm)
Curves
Detection Limit Curve
- (X) Distance (m)
- (Y) Gain
- (X) Distance focusing point (m)
- (Y) Minimum size of the object to be detected (mm)
- (X) Distance focusing point (m)
- (Y) Minimum size of the object to be detected (mm)
