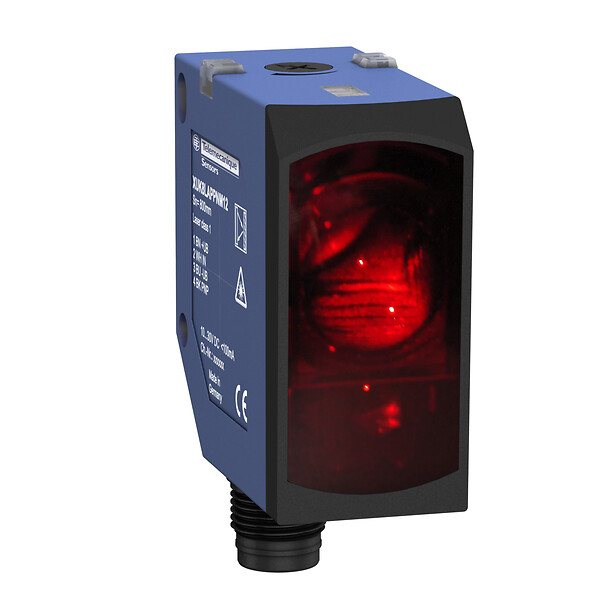

XUK8LAPPNM12
Photoelectric sensors XU, photo electric laser sensor, XUK, background suppression, Sn 0,8 m -10...30 VDC M12
Commercialised
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Series name
Application assembly
Application material handling
Application material handling
Electronic sensor type
Photo-electric sensor
Sensor name
XUK
Sensor design
Compact 50 x 50
Detection system
Diffuse with background suppression
Material
Plastic
Type of output signal
Discrete
Supply circuit type
DC
Wiring technique
4-wire
Discrete output type
PNP
Discrete output function
1 NO or 1 NC programmable
Electrical connection
1 male connector M12, 4 pins
Product specific application
Not applicable
Emission
Red laser diffuse with background suppression class 1
Enclosure material
ABS/PC
Lens material
PMMA
Output type
Solid state
Status LED
1 LED (yellow) for output state, 1 LED (green/yellow) for supply on/output state
[Us] rated supply voltage
24 V DC with reverse polarity protection
Maximum voltage drop
<2 V
Switching capacity in mA
<= 100 mA (overload and short-circuit protection)
Current consumption
<= 30 mA no-load
Delay first up
300 MILLISECOND
Delay response
0.5 MILLISECOND
Setting-up
Using teach button or remote teaching
Delay recovery
0.5 MILLISECOND
Vibration resistance
7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection
IP67 conforming to IEC 60529, IP69K conforming to DIN 40050
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S01
Number of units in package 2
28
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
1.756 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings

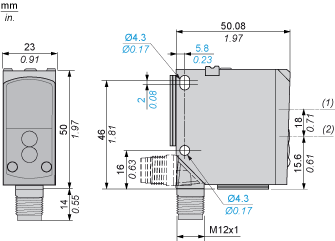

Dimensions
- (1) Receiver optical axis
- (2) Transmitter optical axis
Wiring Schemes Using M12 Connector
- 1 : (+)
- 2 : +UB = NC, -UB = NO, not connected = NO
- 3 : (-)
- 4 : Output
- BN : Brown
- WH : White
- BU : Blue
- BK : Black
- +UB : External teach
- -UB : Pushbutton locking
Curves

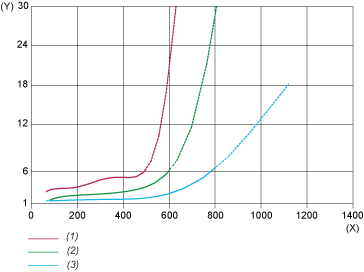

Scanning Properties
- (X) Detection distance (mm)
- (Y) Distance (%)
- (1) Black/white 6%/90%
- (2) Grey/white 18%/90%
- (3) White/white 90%/90%
Curves

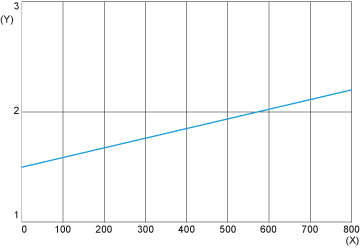

Size of Luminous Point
- (X) Detection distance (mm)
- (Y) Distance (%)
- (1) Black/white 6%/90%
- (2) Grey/white 18%/90%
- (3) White/white 90%/90%
- (X) Distance (mm)
- (Y) Size (mm)
