XUK9ANANM12

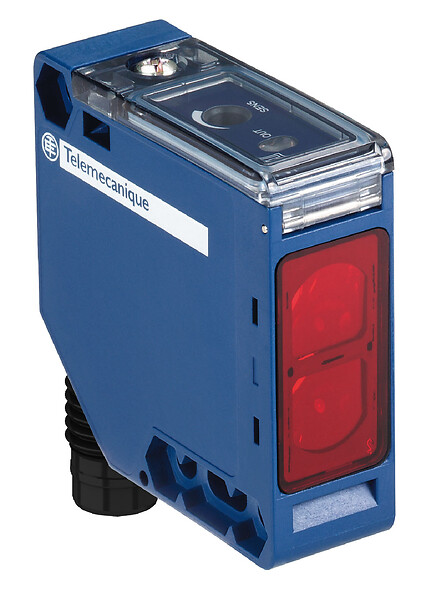

Photoelectric sensors XU, XUK, polarised, Sn 5 m, 12...24 VDC, M12
END OF COMMERCIALISATION
XUK9ANANM12 is replaced by the following product:
Quantity : 1
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Sensor name
XUK
Series name
General purpose single mode
Product specific application
Not applicable
Enclosure material
PBT
Electronic sensor type
Photo-electric sensor
Sensor design
Compact 50 x 50
Electrical connection
1 male connector M12, 4 pins
Material
Plastic
Wiring technique
3-wire
Detection system
Polarised reflex
Emission
Red polarised reflex
Discrete output function
1 NO
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Type of output signal
Discrete
Supply circuit type
DC
Switching frequency
250 Hz
Discrete output type
NPN
Delay response
2 MILLISECOND
Setting-up
Without sensitivity adjustment
Current consumption
<= 35 mA no-load
Output type
Solid state
Switching capacity in mA
<= 100 mA (overload and short-circuit protection)
Lens material
PMMA
Status LED
1 LED (yellow) for output state
Sensing range
> 1...5 m
Maximum voltage drop
<1.5 V (closed state)
Delay first up
15 MILLISECOND
Delay recovery
2 MILLISECOND
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection
IP65 double insulation conforming to IEC 60529
Vibration resistance
7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4.2 CENTIMETER
Package 1 width
9.6 CENTIMETER
Package 1 length
6.7 CENTIMETER
Package 1 weight
59 GRAM
Unit type of package 2
S02
Number of units in package 2
44
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
3.096 KILOGRAM
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
