XUSZVA12
Telemecanique Safety light curtains XUSL, Anti vibration kit comprising 12 dampers
Commercialised
Expand all
Datasheet
Range of product
Telemecanique Safety light curtains XUSL
Accessory / separate part category
Spare parts
Accessory / separate part type
Anti-vibration kit
Product compatibility
XUSL2E
XUSL4E
XUSL4E
Accessory / separate part destination
Safety light curtain type 2
safety light curtain type 4
safety light curtain type 4
Kit composition
12 damper(s)
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S01
Number of units in package 2
24
Package 2 height
15 CENTIMETER
Package 2 width
15 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
3.756 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings

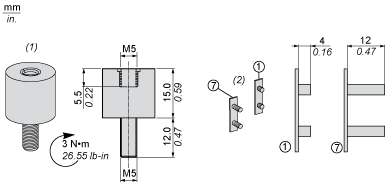

Dimensions

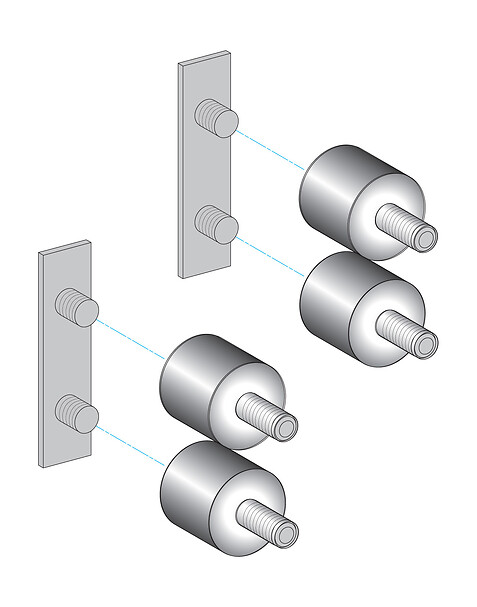

- (1) Anti Vibration Damper
- (2) Insert

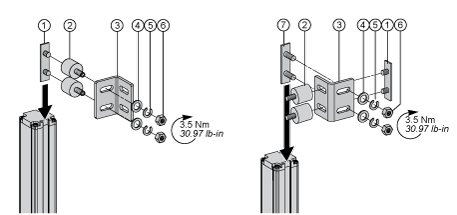

Mounting and Clearance
