XUSZWPE120
Telemecanique Safety light curtains XUSL, Protective screen 1245 mm for light curtains
Commercialised
Expand all
Datasheet
Range of product
Telemecanique Safety light curtains XUSL
Accessory / separate part category
Protection accessories
Accessory / separate part type
Protective screen
Product compatibility
XUSL.E…121
Accessory / separate part destination
Safety light curtain type 2
safety light curtain type 4
safety light curtain type 4
Material
Polycarbonate
Sensing distance reduction coefficient
0.97 Sn
Resistance to chemical agents
Resistant alkalis
resistant aqueous solutions
resistant detergents and cleaners
resistant to inorganic diluted acids
resistant aqueous solutions
resistant detergents and cleaners
resistant to inorganic diluted acids
Unit type of package 1
PCE
Number of units in package 1
1
Package 2 height
14.5 CENTIMETER
Package 2 width
20 CENTIMETER
Package 2 length
136 CENTIMETER
Package 2 weight
1.8 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Mounting and Clearance

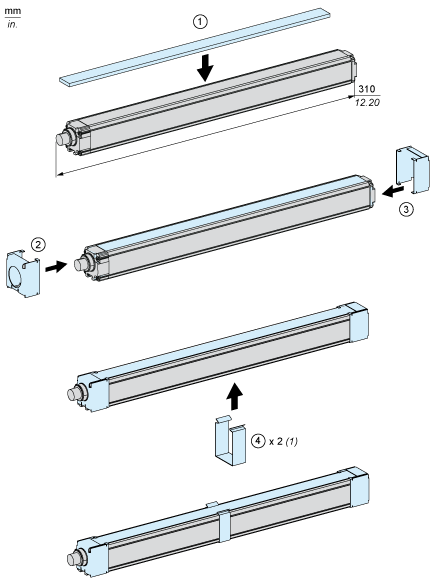

Various Stages in the Protective Screen Assembly
- (1) Depending on the length
