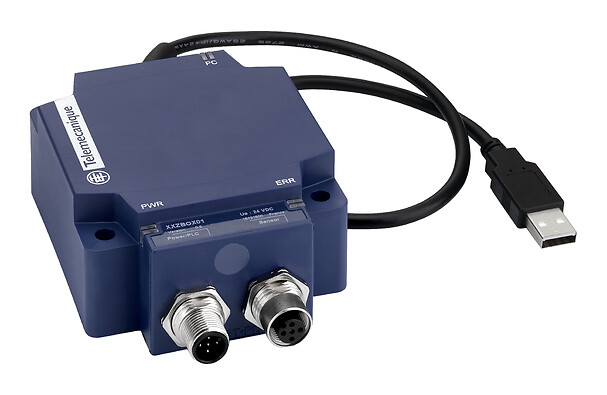

XXZBOX01
Ultrasonic sensor configuration interface
Commercialised
Expand all
Datasheet
Product or component type
Accessory kit
Accessory / separate part destination
Ultrasonic sensor
Product compatibility
XXA - ultrasonic sensor, XXS - ultrasonic sensor
Accessory / separate part category
Configuration accessories
Accessory / separate part type
Configuration software
[Us] rated supply voltage
24 V DC
Connector type
5 pins M12 female connector , 5 pins M12 male connector
Local signalling
LED (green) for power supply, LED (orange) for communication, LED (red) for error
Cable distance between devices
3000 MILLIMETER
Material
Plastic and metal
Transmission rate
19200 bps
Integrated connection type
USB type A 0.5 m
Standards
CE
IP degree of protection
IP40 conforming to IEC 60529
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S02
Number of units in package 2
2
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
1.5 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. Fo more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings

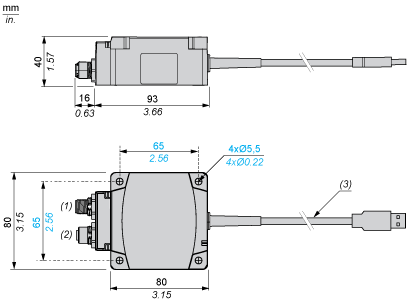

Dimensions
- (1) : Male M12 connector, 5-pin: power supply
- (2) : Female M12 connector, 5-pin: sensor
- (3) : Cable length: 0.5 m/1.64 ft. (USB cable A type connector): PC
Connections
Interface Connector for Power Supply Adapter (M12 Male)
Connections
Interface Connector for Sensor (M12 Female)
- (1) : Output is only active during the “echo display” mode and “measure” mode.
- (2) : Output 2 is not available on all sensors.
- (3) : The 5th pins of the M12 male and M12 female connectors are electrically connected to one another.
Expand all
Documents & Downloads
Document name
Date
Size
2024-02-07
18921683
Document name
Date
Size
2024-07-18
90513
Document name
Date
Size
Expand all
Related products & accessories
XXA18B1VM12
Ultrasonic sensors XX, ultrasonic sensor cyl. 90 deg M18, Sn=1 m, analog 0 10 V, SYNC, connector M12
XXA30B1VM12
Ultrasonic sensors XX, ultrasonic sensor, metal, cylindrical M30, angled, 1 m, 0...10 V
XXA30P2VM12
Ultrasonic sensors XX, ultrasonic sensor, plastic, cylindrical M30, angled, 2 m, 0...10 V
XXS18S1VM12
Ultrasonic sensors XX, ultrasonic sensor cylindrical M18, Sn=1 m, analog 0 10 V, SYNC, connector M12

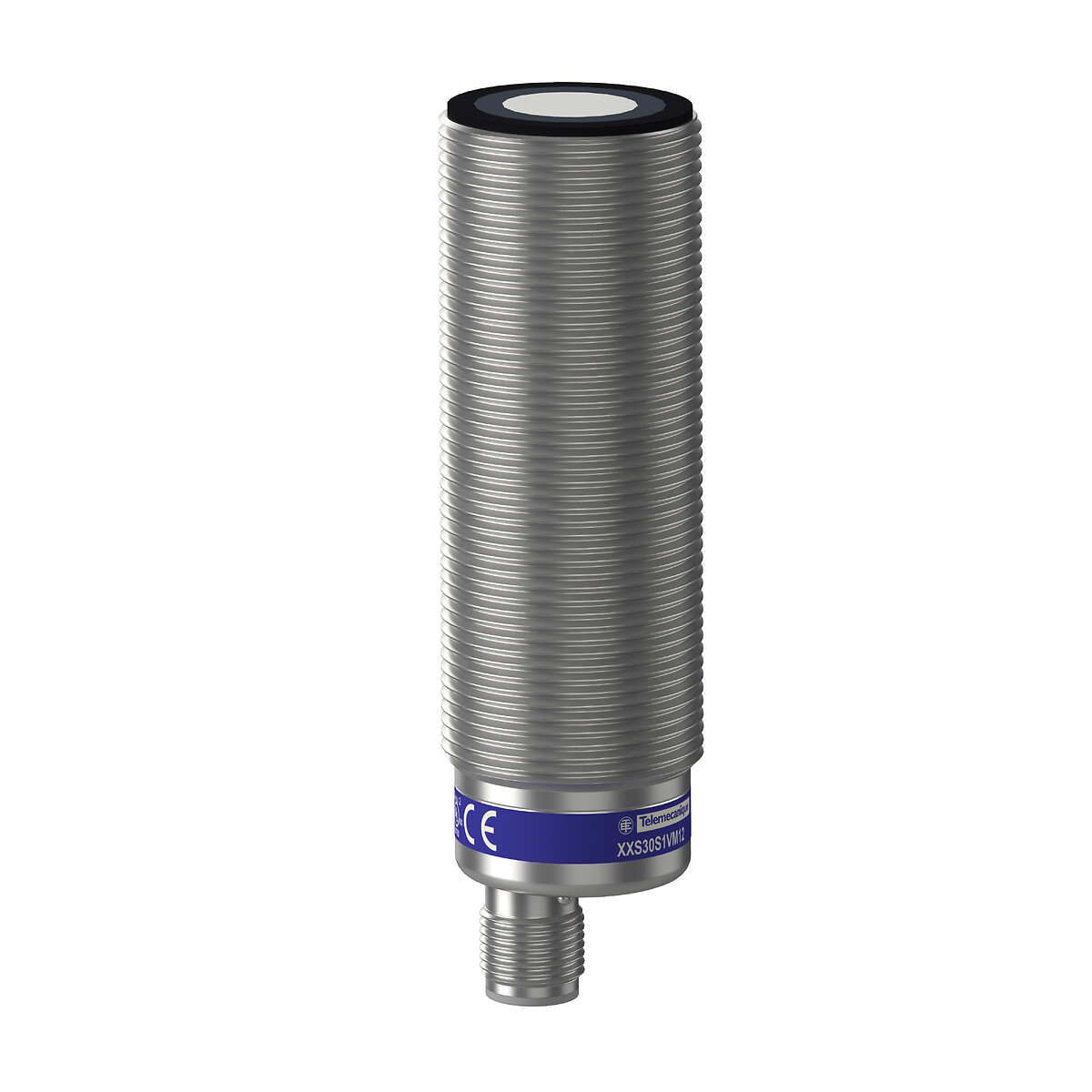

XXS30S1VM12
