Limit switch, Limit switches XC Standard, XCRT, polyester enclosure stainless steel roller with lever, 2C/O
COMMERCIALISED
Expand all
Datasheet
Range of product
OsiSense XC
Series name
Special format
Product or component type
Limit switch
Product specific application
For conveyor belt shift monitoring
Device short name
XCRT
Sensor design
-
Body type
Fixed
Head type
Rotary head
Material
Polyester
Fixing mode
By the body
Movement of operating head
Rotary
Type of operator
Spring return roller stainless steel with lever
Type of approach
Lateral approach, 2 directions
Electrical connection
Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm²
Contacts type and composition
2 C/O
Contact operation
Snap action
Contact block per direction [control circuit]
2 per direction
Positive opening
Without
Body material
Polyester
Switch actuation
By conveyor belt
Cable entry
1 entry tapped for Pg 13.5 cable gland, cable outer diameter: 9-12 mm conforming to NF C 68-300
Contacts insulation form
Za
Contact code designation
A300, AC-15 (Ue = 240 V), Ie = 3 A conforming to IEC 60947-5-1 appendix A, Q300, DC-13 (Ue = 250 V), Ie = 0.27 A conforming to IEC 60947-5-1 appendix A
Resistance across terminals
25 MOhm conforming to IEC 60255-7 category 3
Terminals description ISO n°1
(11-12)NC
(13-14)NO
(13-14)NO
Shock resistance
30 gn for 18 ms conforming to IEC 60068-2-27
Vibration resistance
9 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
IP degree of protection
IP65 conforming to IEC 60529
Overvoltage category
Class I conforming to IEC 61140, class I conforming to NF C 20-030
Protective treatment
TC
Standards
CSA C22.2 No 14
IEC 60204-1
IEC 60947-5-1
NF C 79-130
IEC 60204-1
IEC 60947-5-1
NF C 79-130
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
12.3 CENTIMETER
Package 1 width
9 CENTIMETER
Package 1 length
31.5 CENTIMETER
Package 1 weight
1.614 KILOGRAM
Unit type of package 2
S03
Number of units in package 2
6
Package 2 height
30 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
10.18 KILOGRAM
Unit type of package 3
CAR
Number of units in package 3
1
Package 3 height
31.5 CENTIMETER
Package 3 width
12.3 CENTIMETER
Package 3 length
9 CENTIMETER
Package 3 weight
1.617 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings

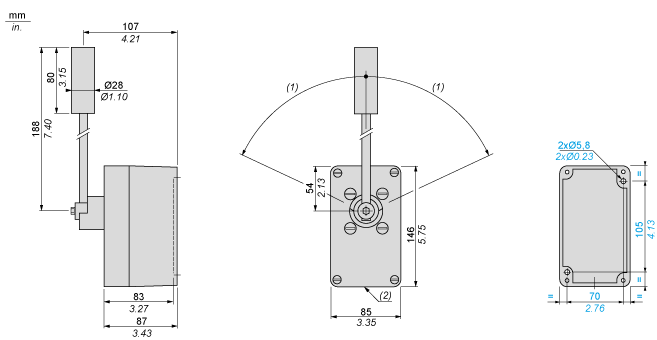

Dimensions
- (1) 70° max.
- (2) 1 plain entry for Pg 13.5 cable gland
Wiring Diagram
2 Single-pole CO Snap Action
- (A) 1 contact
- (B) 2 contact
Wiring Diagram
2 Single-pole CO Snap Action
- (A) 1 contact
- (B) 2 contact
- (A) 1 contact
- (B) 2 contact

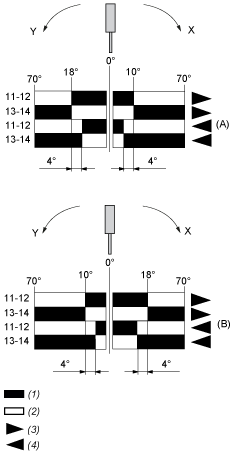

Functionnal Diagram
- (A) 1st contact
- (B) 2nd contact
- (1) Closed
- (2) Open
- (3) Tripping
- (4) Resetting
