XUX9ARCNT16
Photoelectric sensor XUX, polarised reflex, Sn 11 m, 24...240 VAC/DC, NO/NC
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Series name
General purpose single mode
Sensor name
XUX
Electronic sensor type
Photo-electric sensor
Sensor design
Compact 92 x 71
Product specific application
Not applicable
ETIM classification
ETIM 9 - EC002717 - Retroreflective photoelectric sensor
Material
Plastic
Lens material
PMMA
Enclosure material
PBT
[Sn] nominal sensing distance

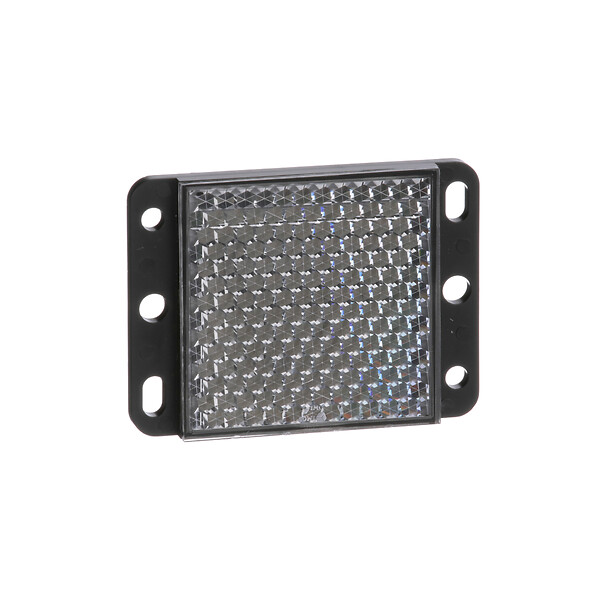

11-11 m polarised reflex need reflector XUZC50
Maximum sensing distance
15 m polarised reflex
Wiring technique
5-wire
Detection system
Polarised reflex
Delay response
25 ms
Indivisible sale quantity
1
Sensing range
> 5...15 m
Cable entry
1 entry for M16 x 1.5 cable gland, cable outer diameter: 7-10 mm
Electrical durability
500000 cycles, cos f = 1 , operating rate <60 cyc/mn at 250 V, 500000 cycles, cos f = 0.4 , operating rate <60 cyc/mn at 250 V
Electrical connection
Screw-clamp terminals, 1 x 1.5 mm² or 1 x 0.75 mm² with adaptor
Supply voltage limits
20-264 V AC
[Us] rated supply voltage
24...240 V AC/DC
Supply circuit type
AC/DC
Switching capacity in mA
3 A (cos φ = 1 for 0.5 million cycles at 1 operating cycle per second at 250 V), 0.5 A (cos φ = 0.4 for 0.5 million cycles at 1 operating cycle per second at 250 V)
Maximum voltage drop
<1.5 V (closed state)
Current consumption
<= 35 mA no-load
Emission
Red polarised reflex
Setting-up
Sensitivity adjustment
Output type
Relay
Type of output signal
Discrete
Discrete output function
1 C/O
Switching frequency
20 Hz
Status LED
1 LED (yellow) for output state, 1 LED (red) for instability, 1 LED (green) for supply
Delay first up
60 ms
Delay recovery
25 ms
Height
92 mm
Width
31 mm
Depth
77 mm
Product weight
0.2 kg
IP degree of protection
IP67 double insulation conforming to IEC 60529, IP65 double insulation conforming to IEC 60529
Ambient air temperature for operation
-25…55 °C
Ambient air temperature for operation
-25-55 °C
Ambient air temperature for storage
-40…70 °C
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
Vibration resistance
7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Country of origin
ID (Indonesia)
Unit type of package 1
PCE
Number of units in package 1
1
New Package 1 GTIN-13
3666916035559
Package 1 height
4.4 cm
Package 1 width
9.8 cm
Package 1 length
13 cm
Package 1 weight
0.2 kg
Unit type of package 2
S02
Number of units in package 2
22
New Package 2 GTIN 14
13666916035556
Package 2 height
15 cm
Package 2 width
30 cm
Package 2 length
40 cm
Package 2 weight
4.789 kg
Unit type of package 3
CAR
Number of units in package 3
1
New Package 3 GTIN 14
23666916035553
Package 3 height
4.2 cm
Package 3 width
9.5 cm
Package 3 length
13 cm
Package 3 weight
0.197 kg
