ZC2JD26
Limit switch body, Limit switches XC Standard, ZC2J, plug in, without display, 2C/O, -40...70 °C
COMMERCIALISED
Expand all
Datasheet
Range of product
TE LIMIT SWTES XC STNDRD
Series name
STANDARD FORMAT
Product or component type
LIMIT SWITCH BODY
Device short name
ZC2J
Body type
PLUG IN BODY
Product compatibility
XC2J
Body material
METAL
Cable entry
1 tapped entry for Pg 13.5 cable gland (included)
Contacts type and composition
2 OC
Contact operation
SNAP ACTION
Contacts material
SILVER PLATED CONTACTS
Electrical connection
Screw-clamp terminals, clamping capacity: 1 x 0.75...2 x 1.5 mm²
Positive opening
WITHOUT
Resistance across terminals
0.25 mOhm conforming to IEC 60255-7 category 3
Terminals description ISO n°1
11 12NC
13 14NO
21 22NC
23 24NO
13 14NO
21 22NC
23 24NO
IP degree of protection
IP65
IK degree of protection
IK08
Environmental characteristic
TEMPERATURE VARIATION
Unit type of package 1
PCE
Number of units in package 1
1
For all Reach Rohs enquiries contact us at
Expand all
Documents & Downloads
Document name
Date
Size
2024-02-07
12953632
2023-03-08
12600763
Expand all
Related products & accessoires
ZC2JE016
Limit switch head, Limit switches XC Standard, ZC2J, without lever left and right actuation, -40 °C
ZC2JE626

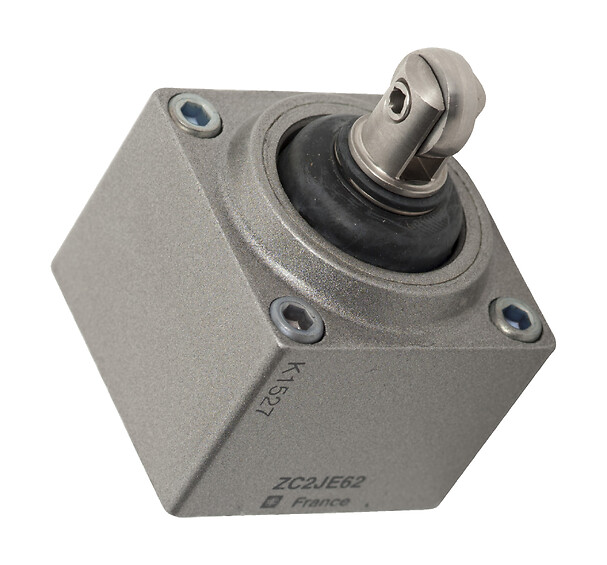

Limit switch head, Limit switches XC Standard, ZC2J, steel roller plunger, -40 °C
ZC2JE646

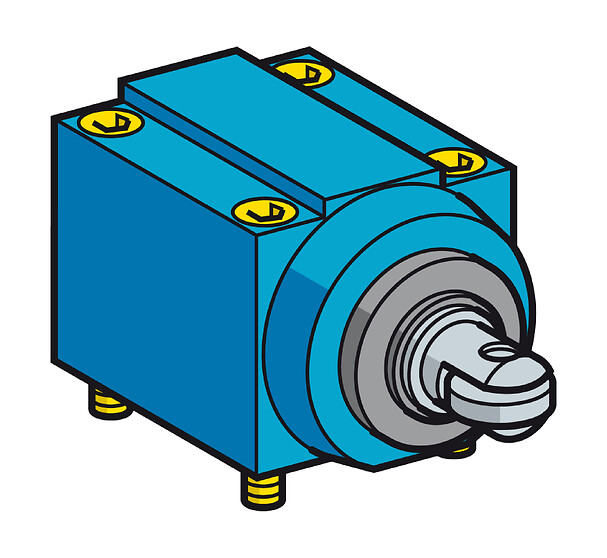

Limit switch head, Limit switches XC Standard, ZC2J, side steel roller plunger horizontal, -40 °C
ZC2JE656
Limit switch head, Limit switches XC Standard, ZC2J, side steel roller plunger vertical, -40 °C
ZC2JE666

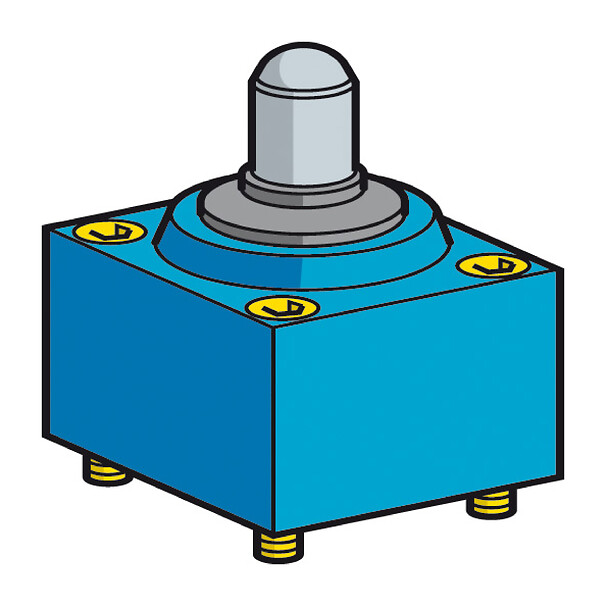

limit switch head ZC2J - steel ball bearing plunger - -40 °C
