XS1N12PA349S

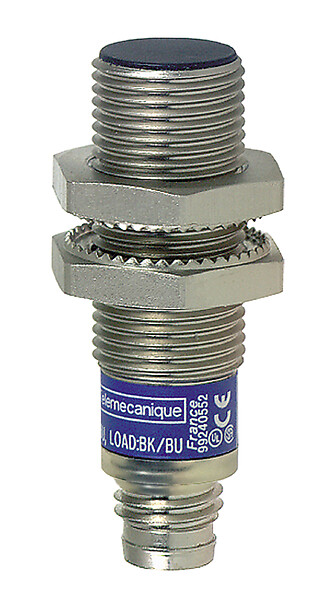

Inductive sensor XS1 M12 - L42mm - brass - Sn4mm - 12..24VDC - M8

End of commercialisation End of commercialization date : December 31st 2010 End of service date : December 31st 2011

Download pdf datasheet Download 3d cad file Find a distributor

XS1N12PA349S is replaced by the following product:

XS612B1PAM12

Inductive proximity sensors XS, inductive sensor XS6 M12, L62mm, brass, Sn4mm, 12...48 VDC, M12

Quantity : 1

Characteristics
Technical Drawings

Expand all

Datasheet

Range of product

Telemecanique Inductive proximity sensors XS

Series name

General purpose

Sensor type

Inductive proximity sensor

Device application

Not applicable

Sensor name

XS1

Sensor design

Cylindrical M12

Size

42 mm

Body type

Fixed

Type of output signal

Discrete

Wiring technique

3-wire

Enclosure material

Nickel plated brass

Discrete output function

1 NO

Discrete output type

PNP

Electrical connection

Male connector M8, 3 pins

[Us] rated supply voltage

12...24 V DC with reverse polarity protection

Switching capacity in mA

<= 200 mA DC with overload and short-circuit protection

IP degree of protection

IP67 conforming to IEC 60529, IP69K conforming to DIN 40050

Detector flush mounting acceptance

Flush mountable

Material

Metal

Output circuit type

Detection face

Frontal

Thread type

M12 x 1

Sensing range

> 2.5...4 mm

Front material

PPS

Differential travel

1...15 % of Sr

Status LED

Output state: 1 LED (yellow)

Switching frequency

<= 2500 Hz

Voltage drop

<2 V (closed)

Current consumption

0...10 mA no-load

Delay first up

5 MILLISECOND

Delay response

0.2 MILLISECOND

Marking

Delay recovery

0.2 MILLISECOND

Product certifications

CSA
UL

Vibration resistance

25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6

Shock resistance

50 gn for 11 ms conforming to IEC 60068-2-27

Unit type of package 1

PCE

Number of units in package 1

California proposition 65

WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Expand all

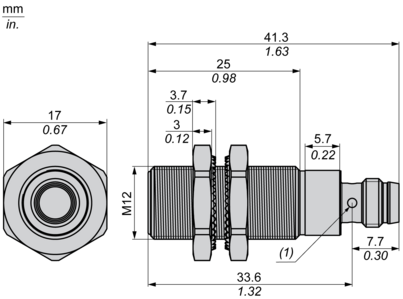

Technical Drawings
