ZCKL5
Limit switch body, Limit switches XC Standard, ZCKL, 1NC+1 NO, slow break, Cable gland include
COMMERCIALISED
Expand all
Datasheet
Range of product
Telemecanique Limit switches XC Standard
Series name
Standard format
Product or component type
Limit switch body
Device short name
ZCKL
Body type
Fixed
Product compatibility
XCKL
Body material
Metal
Cable entry
1 tapped entry for Pg 13.5 cable gland (included)

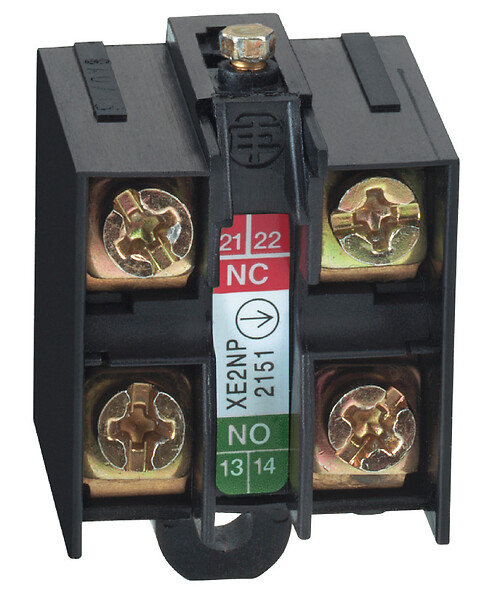

Contacts type and composition
1 NC + 1 NO
Contact operation
Slow-break, break before make
Contacts material
Silver plated contacts
Electrical connection
Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm²
Positive opening
With
Resistance across terminals
0.25 mOhm conforming to IEC 60255-7 category 3
Terminals description ISO n°1
(11-12)NC
(21-22)NC
(21-22)NC
IP degree of protection
IP66
IK degree of protection
IK05
Environmental characteristic
Standard environment
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
3.2 CENTIMETER
Package 1 width
8 CENTIMETER
Package 1 length
6.6 CENTIMETER
Package 1 weight
0.225 KILOGRAM
Unit type of package 2
S02
Number of units in package 2
40
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
9.444 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
