XCCRAR1012

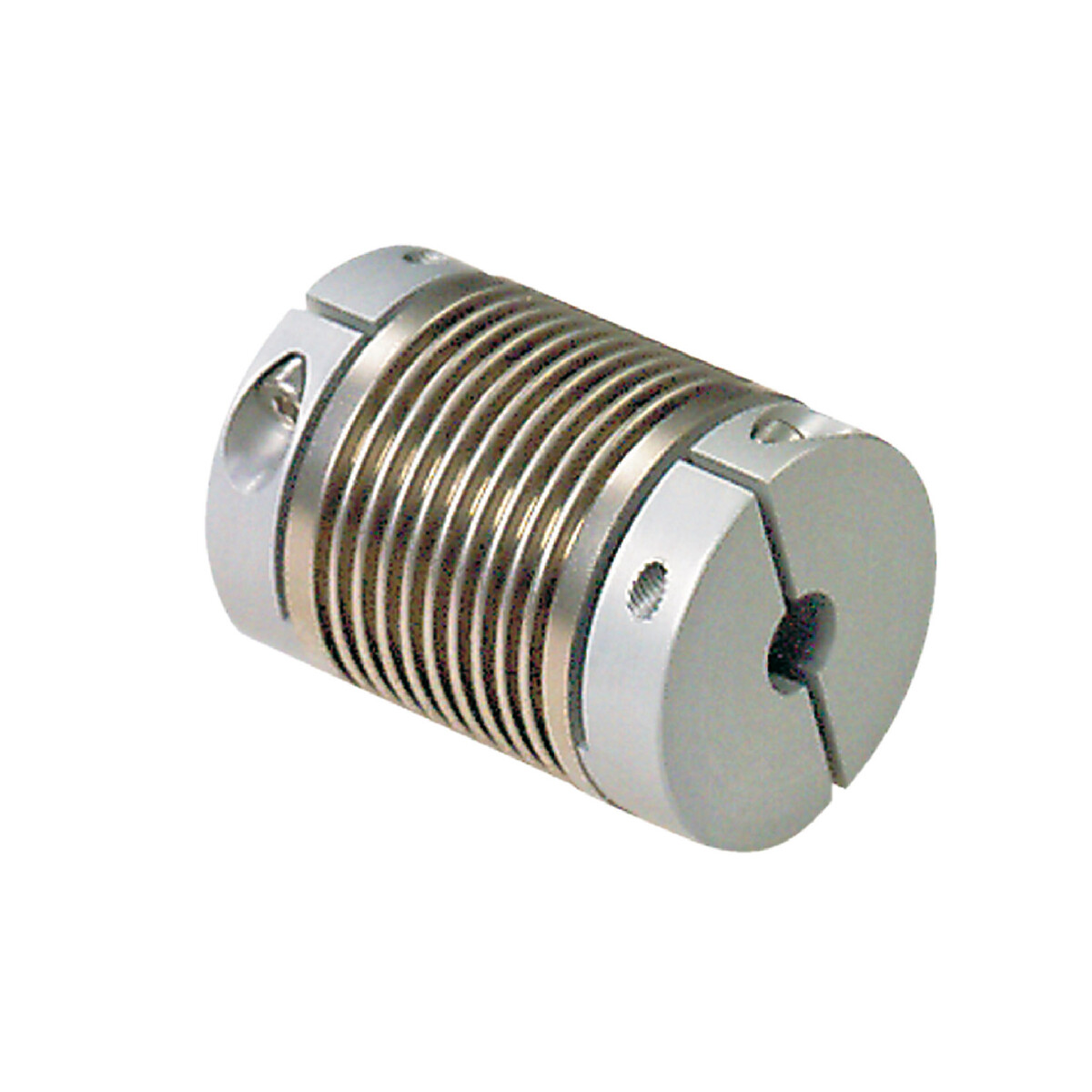

Shaft coupling, for encoder, with spring Ø 10 to 12 mm
End of commercialisation Datum ukončení komercializace : Datum ukončení poskytování služeb :
Rozbalit vše
Katalogový list
Accessory / separate part type
Spring
Accessory / separate part category
Coupling accessories
Accessory / separate part destination
Rotary encoder with solid shaft
Product or component type
Shaft coupling
Collar material
Zamak
Compression expansion
+/- 1 mm
Spring material
Nickel plated steel
Maximum angular misalignment
5°
Maximum radial misalignment
+/- 1.5 mm
Torque value
3 NEWTON_METER
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
4.5 CENTIMETER
Package 1 width
2.8 CENTIMETER
Package 1 length
2.8 CENTIMETER
Package 1 weight
116 GRAM
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Rozbalit vše
Technické výkresy
Dimensions
