XCSLE272751M2

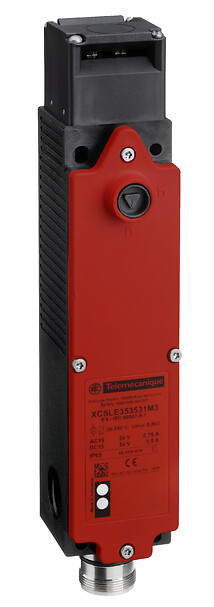

Plastic key operated solenoid switch XCSLE - 4NC - slow - M23 connector - 24V
End of commercialisation End of commercialization date : End of service date :
Expand all
Datasheet
Range of product
Telemecanique Safety switches XCS
Product or component type
Safety switch
Component name
XCSLE
Design
Slim
Material
Plastic
Head type
Key operated turret head
Contacts type and composition
2 NC
Solenoid contacts type and composition
2 NC (slow-break, break before make)
Electromagnet interlocking
Locking on energisation and unlocking on de-energisation of solenoid
[Us] rated supply voltage
24 V - 15...10 %
Electrical connection
Male connector M23, 16 pins
Local signalling
1 LED (orange) for actuator withdrawn, 1 LED (green) for actuator inserted and locked
Signalling circuit voltage
24 V
Contact operation
Slow-break, break before make
Locking options description
With interlocking, locking by solenoid
Positive opening
With NC contact
Supply voltage type
AC/DC
Supply frequency
50/60 Hz
Signalling circuit type
AC/DC
Maximum load current
<= 15 A
Actuator forcible withdrawal rtc
1400 NEWTON
Actuator force for extraction
20 NEWTON
Operating rate
10 cyc/mn for maximum durability
Safety level
Can reach category 4 with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach PL = e with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach SIL 3 conforming to IEC 61508
Safety reliability data
B10d = 5500000 value given for a life time of 20 years limited by mechanical or contact wear
Body material
PA (polyamide)
Head material
PA (polyamide)
Standards
CSA C22.2 No 14
EN 1088/ISO 14119
IEC 60204-1
IEC 60947-5-1
IEC 62061
ISO 13849-1
UL 508
EN 1088/ISO 14119
IEC 60204-1
IEC 60947-5-1
IEC 62061
ISO 13849-1
UL 508
Product certifications
CSA
TÜV
UL
TÜV
UL
Protective treatment
TC
Vibration resistance
5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Shock resistance
10 gn for 11 ms conforming to IEC 60068-2-27
Electrical shock protection class
Class III conforming to IEC 61140
IP degree of protection
IP65 conforming to EN/IEC 60529 and EN/IEC 60947-5-1
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
6 CENTIMETER
Package 1 width
7.5 CENTIMETER
Package 1 length
24.2 CENTIMETER
Package 1 weight
660 GRAM
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
