XF9D251

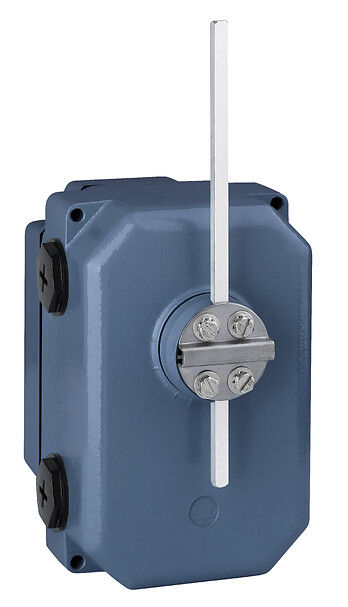

Overtravel limit switches, XR and XF, power switch, manual reset, 4P, 50/25 A, 2/3P scheme

arrow

Commercialised

Download pdf datasheet Download 3d cad file Find a distributor

Expand all

Datasheet

Range of product
XR and XF
Product or component type
Overtravel limit switches
Device short name
XF9
Electrical circuit type
Power circuit
Product specific application
Safety of hoisting equipment
Material
Aluminium alloy: case
Type of operator
Manual latching, restricted by a padlockable device
Reset
Manual reset
Switch actuation
Horizontal approach
Contacts type and composition
Without auxiliary contact block
Contact operation
Snap action
Cable entry
2 entries tapped for Pg 21 cable gland
Standards
IEC 158-1
IEC 947-1
IEC 947-4
NF C 63-110
VDE 0660
Protective treatment
TC
IP degree of protection
IP54 conforming to IEC 60529
Unit type of package 1
PCE
Number of units in package 1
1
Package 1 height
16.2 CENTIMETER
Package 1 width
22.2 CENTIMETER
Package 1 length
27.4 CENTIMETER
Package 1 weight
2.646 KILOGRAM
Unit type of package 2
S06
Number of units in package 2
18
Package 2 height
75 CENTIMETER
Package 2 width
60 CENTIMETER
Package 2 length
80 CENTIMETER
Package 2 weight
60.556 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
