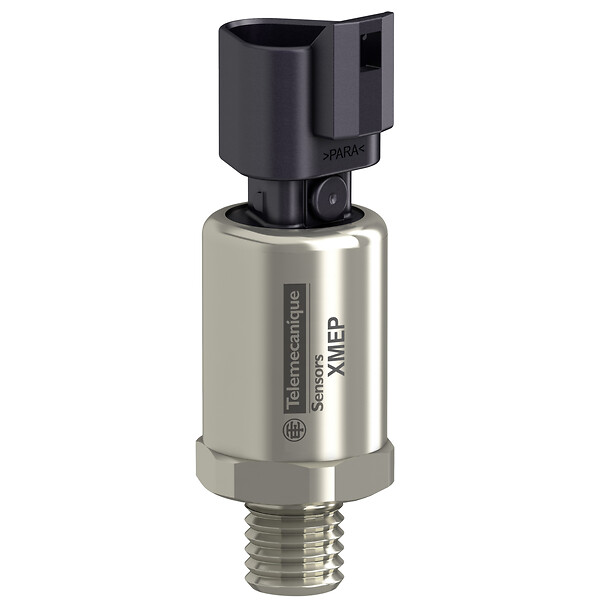

XMEP7K5PT230

Telemecanique Pressure sensors XM

Electronic pressure sensors

Pressure transmitter

XMEP

Control circuit

Without

Fresh water (0-125 °C), air (-40-125 °C), hydraulic oil (-40-125 °C)

1/4" - 18 NPT (male)

DEUTSCH connector DT04-3P 3 pins

12...24 V DC SELV (voltage limits: 9-36 V)

< 23 mA

Analogue

4...20 mA, 2-wire

Set of 1

Individual

Stainless steel AISI 316L

Any position

Load short-circuit
reverse polarity

Electrostatic discharge immunity test conforming to ISO 10605 criteria A 15 kV air, 15 kV contact, susceptibility to electromagnetic fields conforming to ISO 11452-2 criteria A 100 V/m 200…2000 MHz, susceptibility to electromagnetic fields conforming to ISO 11452-4 criteria A 100 mA 20…400 MHz, susceptibility to conducted disturbances conforming to IEC 61000-4-6 criteria A 30 V 0.15...80 MHz, electrical fast transient/burst immunity test conforming to IEC 61000-4-4 criteria A 4 kV, susceptibility to conducted transient disturbances conforming to ISO 7637-2 criteria B level 3

<= 2 ms 10...90 % of full scale

+/- 0,5 % de la plage de mesure

0.1 % of the measuring range

+/- 0,02 % of measuring range/°K

+/- 0,02 % of measuring range/°K

+/- 0.5 % of the measuring range

ECE 10R-5
EN 13309
IEC 61326-2-3
ISO 13766
ISO 14982
UL 61010-1

CE
cULus
E2

12 gn sinus (f = 20-520 Hz) test 4 conforming to ISO 16750-3, 18 gn random (f = 10-2000 Hz) test 4 conforming to ISO 16750-3

50 gn for 11 ms conforming to IEC 60068-2-27

IP65 conforming to IEC 60529, IP67 conforming to IEC 60529, IP69K conforming to IEC 60529

PCE

1

4.1 CENTIMETER

4.5 CENTIMETER

8.5 CENTIMETER

98 KILOGRAM

1
