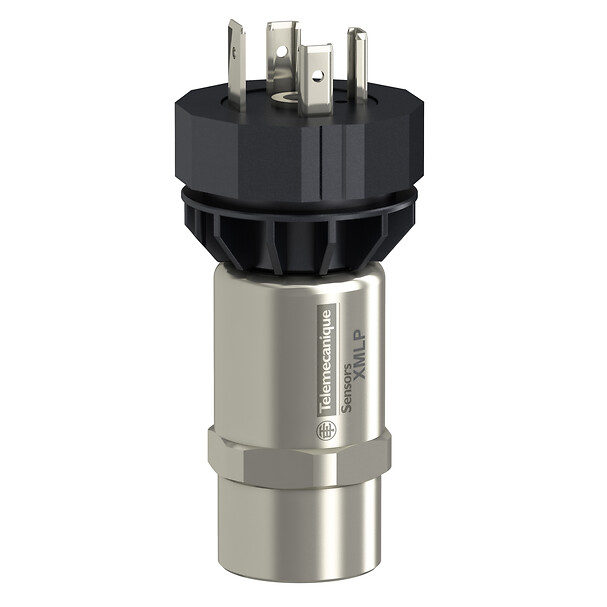

XMLP001GC7BF

Telemecanique Pressure sensors XM

Electronic pressure sensors

Pressure transmitter

XMLP

Control circuit

Without

Fresh water (0-125 °C), air (-15-125 °C), gas (-15-125 °C), hydraulic oil (-15-125 °C)

SAE 7/16-20UNF (female)

1 male connector EN 175301-803-A (ex DIN43650) 3 pins

24 V DC SELV (voltage limits: 12-33 V)

< 7 mA

Analogue

0...10 V, 3-wire

Set of 1

Individual

Ceramic
fluorocarbon FPM
stainless steel AISI 316L

Any position

Load short-circuit
reverse polarity

Susceptibility to electromagnetic fields conforming to IEC 61000-4-3 10 V/m 80...1000 MHz, electrical fast transient/burst immunity test conforming to IEC 61000-4-4 2 kV, radiated RF fields conforming to IEC 61000-4-6 10 V 0.15...80 MHz, electrostatic discharge immunity test conforming to IEC 61000-4-2 8 kV air, 4 kV contact, 1.2/50 µs shock waves immunity test conforming to IEC 61000-4-5 1 kV 42 Ohm, immunity to magnetic fields conforming to IEC 61000-4-8 100 A/m 50 Hz

<= 2 ms 10...90 % of full scale

+/- 0,5 % de la plage de mesure

0.1 % of the measuring range

+/- 0,02 % of measuring range/°K

+/- 0,02 % of measuring range/°K

+/- 0,25 % de la plage de mesure

IEC 61326-2-3
NSF ANSI 61

CE
cULus
RCM

20 gn (f = 10-2000 Hz) conforming to IEC 60068-2-6

100 gn for 11 ms conforming to IEC 60068-2-27

IP65 conforming to IEC 60529

PCE

1

4.1 CENTIMETER

4.5 CENTIMETER

8.5 CENTIMETER

95 GRAM

1
