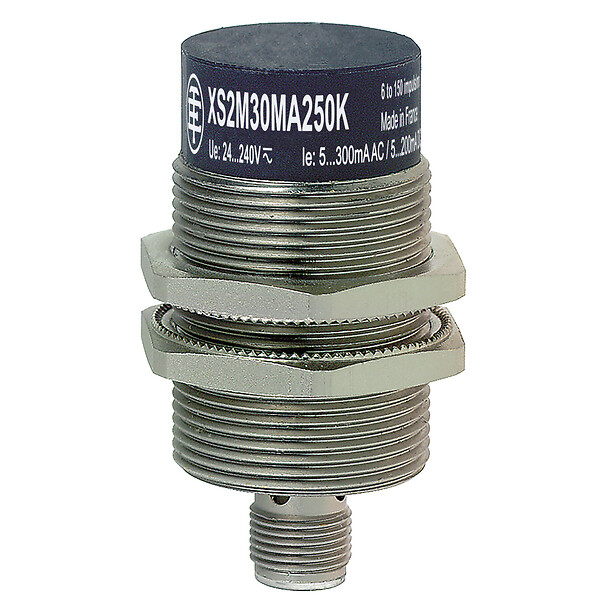

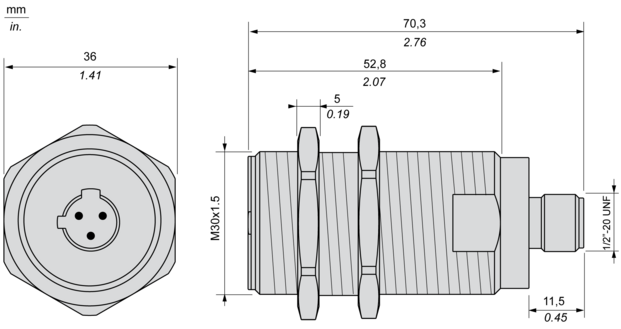

Technical Drawings
Side by side
e (1) ≥ 60 mm/2.36 in.
Face to face
e (2) ≥ 180 mm/7.09 in.
Facing a metal object
e (3) ≥ 45 mm/1.77 in.
Mounted in a metal support
d ≥ 90 mm/3.54 in.
h ≥ 30 mm/1.18 in.
1/2"-20UNF
1 : Grounding
2 : AC
3 : AC
NO output
Standard Steel Target : 45x45x1 mm
(1) Pick-up points
(2) Drop-out points (object approaching from the side)
(y) Sensing distance in mm
