XS912R1PAL2

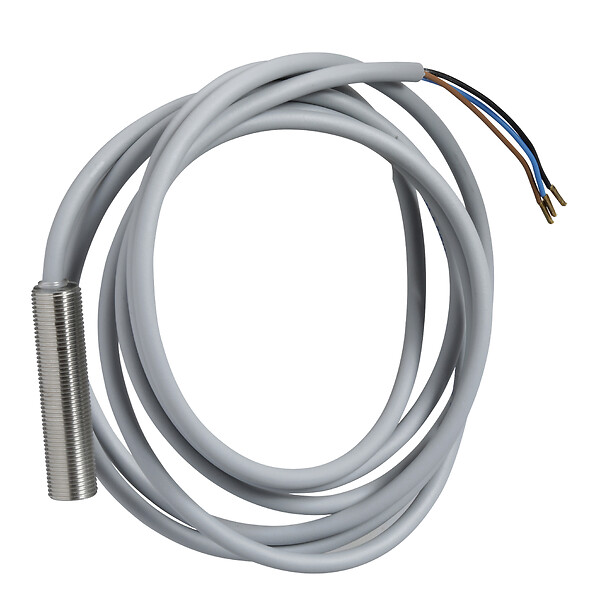

Inductive proximity sensors XS, inductive sensor XS9 M12, L60mm, full SS 303, Sn6 mm, 12...24 VDC, cable 2 m
Discontinued End of commercialization date : 31 May 2023 End of service date : 31 May 2023
XS912R1PAL2 is replaced by the following product:
XS912R1PAM12
Inductive proximity sensors XS, inductive sensor XS9 M12, L60mm, full SS 303, Sn6 mm, 12...24 VDC, M12
Commercialised
Quantity : 1
Expand all
Datasheet
Range of product
Telemecanique Inductive proximity sensors XS
Series name
Application
Sensor type
Inductive proximity sensor
Device application
Harsh environment application
Sensor name
XS9
Sensor design
Cylindrical M12
Size
60 mm
Body type
Single piece body
Enclosure material
Stainless steel 303
Type of output signal
Discrete
Wiring technique
3-wire
[Sn] nominal sensing distance
6 mm
Discrete output function
1 NO
Discrete output type
PNP
Electrical connection
Cable
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Switching capacity in mA
<= 200 mA with overload and short-circuit protection
IP degree of protection
IP67 conforming to IEC 60529
IP69K conforming to DIN 40050
IP69K conforming to DIN 40050
Thread type
M12 x 1
Detection face
Frontal
Detector flush mounting acceptance
Flush mountable
Material
Stainless steel 303
Front material
Stainless steel 303
Sensing range
> 4...8 mm
Differential travel
1...15 % of Sr
Repeat accuracy
<= 5 % of Sr
Output circuit type
DC
Status LED
Output state: 1 LED (yellow)
Supply voltage limits
10…30 V DC
Maximum residual current
0.1 mA open state
Maximum voltage drop
<2 V (closed)
Current consumption
<= 10 mA no-load
Maximum delay first up
40 ms
Maximum delay response
0.00005 ms
Maximum delay recovery
0.023 ms
Marking
CE
Product certifications
cULus
Ambient air temperature for operation
-25…70 °C
Ambient air temperature for storage
-25…70 °C
Vibration resistance
25 gn amplitude = +/- 1 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
Shock resistance
30 gn for 11 ms conforming to IEC 60068-2-27
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
1.8 cm
Package 1 Width
22.0 cm
Package 1 Length
19.0 cm
Package 1 Weight
91.0 g
Unit Type of Package 2
CAR
Number of Units in Package 2
10
Package 2 Height
1.8 cm
Package 2 Width
22.0 cm
Package 2 Length
19.0 cm
Package 2 Weight
2.275 kg
REACh Regulation
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
RoHS exemption information
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
