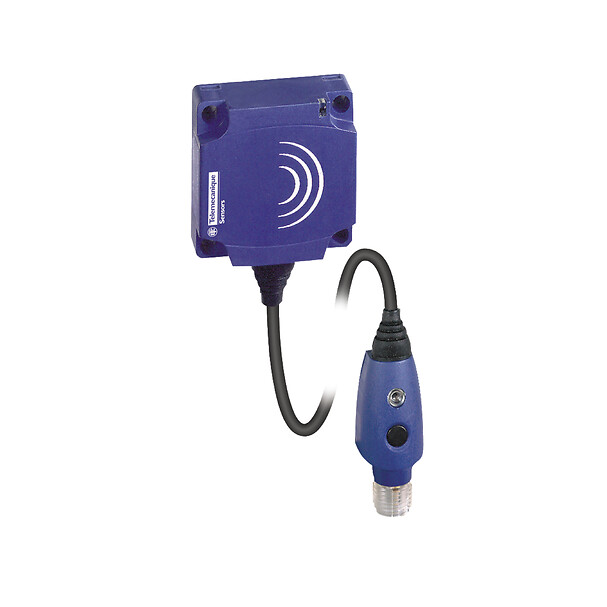

XS9C11RPBL01M12
Inductive proximity sensors XS, Rot. monitoring, 40x40x15, Sn15mm, 6...6000c/mn, 12...24 VDC, M12 0.15 m
Discontinued End of commercialization date : 31 May 2023 End of service date : 31 May 2023
Expand all
Datasheet
Range of product
Telemecanique Inductive proximity sensors XS
Series name
Application
Product or component type
Sensor
Sensor type
Inductive proximity sensor
Device application
Rotation monitoring
Sensor name
XS9
Sensor design
Flat form 40 x 40 x 15
Size
15 mm
Body type
Fixed
Detector flush mounting acceptance
Flush mountable
Material
Plastic
Enclosure material
PBT
Type of output signal
Discrete
Wiring technique
3-wire
[Sn] nominal sensing distance
15 mm
Discrete output function
1 NC
Output circuit type
DC
Discrete output type
PNP
Electrical connection
Remote male connector M12, 4 pins
Cable length
0.15 m
[Us] rated supply voltage
12...24 V DC
Switching capacity in mA
<= 200 mA
IP degree of protection
IP67 double insulation conforming to IEC 60529
Detection face
Frontal
Front material
PBT
Sensing range
> 8...15 mm
Adjustable frequency range
6…6000 cyc/mn
Operating zone
0…12 mm
Differential travel
3...15% of Fr
Repeat accuracy
3% of Sr
Wire insulation material
PVC
Status LED
Supply on: 1 LED (green)
Output state: 1 LED (yellow)
Output state: 1 LED (yellow)
Supply voltage limits
10…36 V DC
Maximum residual current
100 mA open state
Switching frequency
<= 800 Hz
Maximum voltage drop
<2 V (closed)
Current consumption
0...10 mA no-load
Run-up delay at power-up
9 s standard
Marking
CE
Depth
15 mm
Height
40 mm
Width
40 mm
Net weight
0.06 kg
Product certifications
UL
CSA
CSA
Ambient air temperature for operation
-25…70 °C
Ambient air temperature for storage
-40…85 °C
Vibration resistance
25 gn amplitude = +/- 2 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
Shock resistance
50 gn for 11 ms conforming to IEC 60068-2-27
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
4.2 cm
Package 1 Width
6.6 cm
Package 1 Length
9.6 cm
Package 1 Weight
84.0 g
Unit Type of Package 2
S01
Number of Units in Package 2
22
Package 2 Height
15.0 cm
Package 2 Width
15.0 cm
Package 2 Length
40.0 cm
Package 2 Weight
2.073 kg
REACh Regulation
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury free
Yes
RoHS exemption information
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Expand all
Technical Drawings
Dimensions
(1) For CHC type screws
Setting-up
Minimum Mounting Distances (mm)
Minimum Mounting Distances (mm)
Side by Side
e (1) ≥ 60
Face to Face
e (2) ≥ 120
Wiring Schemes
PNP
PNP
M12
