Datasheet
Technical Drawings
(1) For CHC type screws
Minimum Mounting Distances (mm)
Minimum Mounting Distances (mm)
Minimum Mounting Distances (mm)
Side by Side
e (1) ≥ 30
Face to Face
e (2) ≥ 72
Facing a Metal Object
e (3) ≥ 30
3-Wire Connection
Output current | Load impedance value | Output voltage | Load impedance value | |
---|---|---|---|---|
24 V | 0...10 mA | R ≤ 1400 Ω | 0...10 V | R = 1000 Ω |
BU : Blue
BN : Brown
BK : Black
(1) Voltage output
Ensure a minimum of 5 V between the + (terminal 1) and the sensor output (terminal 4)

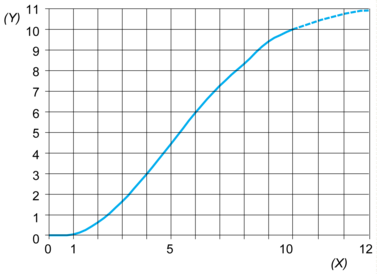

(Y) Us (V)
(X) Sensors - object distance (mm)
