XULH06353

Photoelectric sensors XU, XUL, reflex, Sn 6 m, 12...24 VDC, cable 2 m

End of commercialisation End of commercialization date : End of service date :

Download pdf datasheet Download 3d cad file Find a distributor

XULH06353 is replaced by the following product:

XUK9APBNL2

Photoelectric sensors XU, XUK, polarised, Sn 5 m, 12...24 VDC, cable 2 m

Quantity :  1

Expand all

Datasheet

Range of product
Telemecanique Photoelectric sensors XU
Series name
General purpose single mode
Electronic sensor type
Photo-electric sensor
Sensor name
XUL
Sensor design
Compact
Detection system
Reflex
Material
Plastic
Type of output signal
Discrete
Wiring technique
3-wire
Supply circuit type
DC
Discrete output type
PNP
Discrete output function
1 NO or 1 NC programmable
Electrical connection
Cable
Product specific application
Not applicable
Emission
Infrared reflex
Enclosure material
ABS
Lens material
PMMA
Output type
Solid state
Add on output
Without
Cable composition
4 x 0.34 mm²
[Us] rated supply voltage
12...24 V DC with reverse polarity protection
Status LED
1 LED for output state
Switching capacity in mA
<= 100 mA (overload and short-circuit protection)
Current consumption
<= 35 mA no-load
Maximum voltage drop
<1.5 V (closed state)
Delay first up
15 MILLISECOND
Delay response
2 MILLISECOND
Setting-up
Without sensitivity adjustment
Delay recovery
2 MILLISECOND

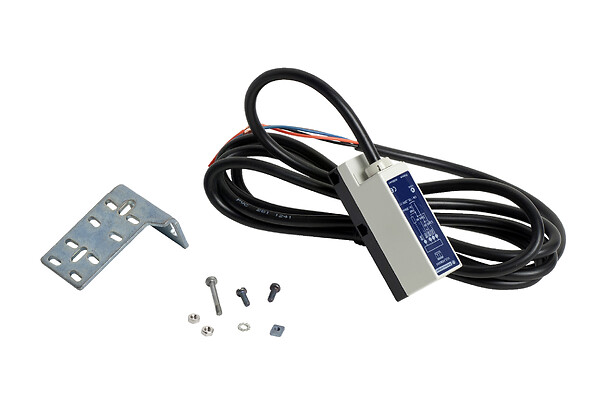

Kit composition
Bracket XULZ41
sensor
Vibration resistance
7 gn, amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
IP degree of protection
IP67 conforming to IEC 60529, IP671 conforming to NF C 20-010
Shock resistance
20 gn (duration = 11 ms) conforming to IEC 60068-2-27
Package 1 height
3.5 CENTIMETER
Package 1 width
9 CENTIMETER
Package 1 length
25 CENTIMETER
Package 1 weight
211 GRAM
Unit type of package 1
PCE
Number of units in package 1
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Expand all

Related products & accessories

XUZASK003

Fixing bracket, Photoelectric sensors XU, accessory for sensor, XUK, metal, for XUL substitution
