XUM2AKCNL2T

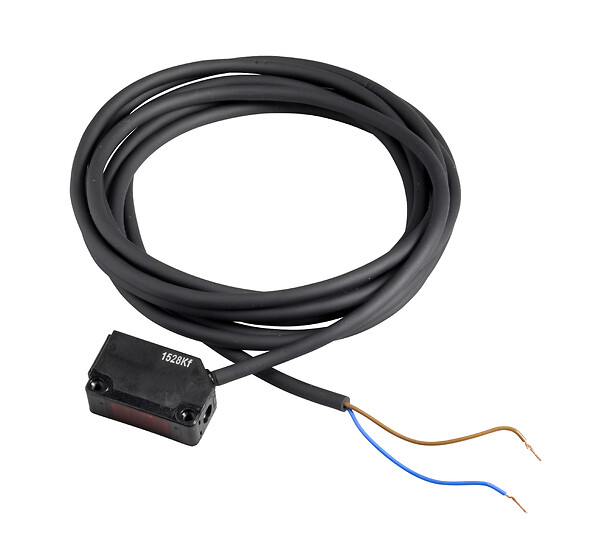

Photoelectric sensors XU, XUM, emitter, 12...24 VDC, cable 2 m

End of commercialisation End of commercialization date : End of service date :

Download pdf datasheet Download 3d cad file Find a distributor

XUM2AKCNL2T is replaced by the following product:

XUM2AKXBL2T

Photoelectric sensors XU, miniature, thru beam, Smax=30 m, transmitter, cable 2 m

Quantity : 1

Characteristics
Technical Drawings
Documents & Downloads
Related products & accessories

Expand all

Datasheet

Range of product

Telemecanique Photoelectric sensors XU

Series name

General purpose single mode

Electronic sensor type

Photo-electric sensor transmitter

Sensor name

XUM

Sensor design

Miniature

Detection system

Thru beam

Material

Plastic

Supply circuit type

Wiring technique

2-wire

Electrical connection

Cable

Product specific application

Not applicable

Emission

Red thru beam

Enclosure material

PBT

Lens material

PMMA

Status LED

1 LED (orange) for supply on

[Us] rated supply voltage

12...24 V DC with reverse polarity protection

Switching capacity in mA

<= 100 mA (overload and short-circuit protection)

Switching frequency

1000 Hz

Maximum voltage drop

<3 V (closed state)

Current consumption

11 mA no-load

Delay first up

100 MILLISECOND

Delay response

0.5 MILLISECOND

Delay recovery

0.5 MILLISECOND

Setting-up

Sensitivity adjustment

Vibration resistance

7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 11 ms) conforming to IEC 60068-2-27

IP degree of protection

IP67 conforming to IEC 60529, IP65 conforming to IEC 60529

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

1.5 CENTIMETER

Package 1 width

15 CENTIMETER

Package 1 length

15 CENTIMETER

Package 1 weight

56 GRAM

Unit type of package 2

S01

Number of units in package 2

Package 2 height

15 CENTIMETER

Package 2 width

15 CENTIMETER

Package 2 length

40 CENTIMETER

Package 2 weight

1.92 KILOGRAM

Unit type of package 3

PAL

Number of units in package 3

960

Package 3 height

60 CENTIMETER

Package 3 width

80 CENTIMETER

Package 3 length

960 CENTIMETER

Package 3 weight

56.64 KILOGRAM

California proposition 65

WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
