Datasheet
Technical Drawings
(1) : Setting potentiometer (sensitivity)
(2) : Setting potentiometer (output)
(3) : Reception
(4) : Transmission
Wiring diagram
BN (Brown) : (+)
BK (Black) : OUT/Output
BU (Blue) : (-)

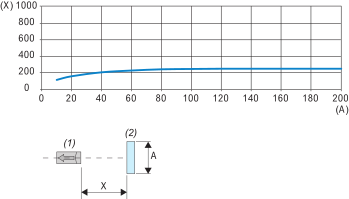

Object size/sensing distance
(1) : Sensor
(2) : Object (white mat paper of A mm square)
(A) : Side length (mm)
(X) : Sensing distance (mm)

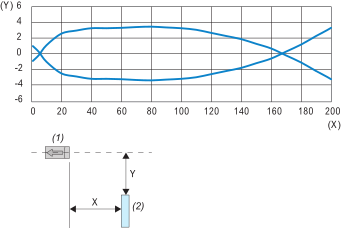

Lateral displacement
(1) : Sensor
(2) : Object (200 x 200 mm square white paper)
(X) : Sensing distance (mm)
(Y) : Lateral displacement (mm)

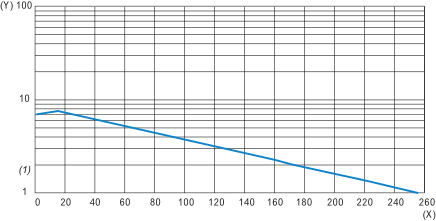

Excess gain
(1) : Operation level
(X) : Sensing distance (m)
(Y) : Excess gain
