XUM5APCNL2
Photoelectric sensors XU, XUM, diffuse, Sn 1 m, 12...24 VDC, cable 2 m
Discontinued End of commercialization date : 16 January 2023 End of service date : 16 January 2023
XUM5APCNL2 is replaced by the following product:
XUM5APXBL2
Photoelectric sensors XU, miniature, diffuse long, Smax=1.9 m, PNP, cable 2 m
Commercialised
Quantity : 1
Expand all
Datasheet
Range of product
Telemecanique Photoelectric sensors XU
Series name
General purpose single mode
Electronic sensor type
Photo-electric sensor
Sensor name
XUM
Sensor design
Miniature
Detection system
Diffuse
Material
Plastic
Type of output signal
Discrete
Supply circuit type
DC
Wiring technique
3-wire
Discrete output type
PNP
Discrete output function
1 NO or 1 NC programmable
Electrical connection
Cable
Cable length
2 m
Product specific application
-
Emission
Infrared diffuse
[Sn] nominal sensing distance
1 m diffuse
Enclosure material
PBT
Lens material
PMMA
Output type
Solid state
Wire insulation material
PVC
Status LED
1 LED (yellow) for output state
1 LED (red) for instability
1 LED (red) for instability
[Us] rated supply voltage
12...24 V DC
Switching capacity in mA
<= 100 mA (overload and short-circuit protection)
Switching frequency
<= 500 Hz
Maximum voltage drop
<1.5 V (closed state)
Current consumption
35 mA no-load
Maximum delay first up
30 ms
Maximum delay response
1 ms
Maximum delay recovery
1 ms
Setting-up
Sensitivity adjustment
Depth
27 mm
Height
38 mm
Width
12 mm
Net weight
0.08 kg
Product certifications
UL
CSA
CE
CSA
CE
Ambient air temperature for operation
-25…55 °C
Ambient air temperature for storage
-30…70 °C
Vibration resistance
7 gn, amplitude = +/- 1.5 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
Shock resistance
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection
IP67 double insulation conforming to IEC 60529
IP65 double insulation conforming to IEC 60529
IP65 double insulation conforming to IEC 60529
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
1.5 cm
Package 1 Width
14.0 cm
Package 1 Length
14.0 cm
Package 1 Weight
63.0 g
REACh Regulation
EU RoHS Directive
Pro-active compliance (Product out of EU RoHS legal scope)
Mercury free
Yes
RoHS exemption information
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Warranty
18 months
Expand all
Technical Drawings
Dimensions
- R : Reception
- T : Transmission
- (1) Potentiometer
Mounting and Clearance
- (1) Configuration switch
- (2) Output state LED
- (3) Stability and power on LED
- (4) Adjustment potentiometer
Connections and Schemes
PNP
- BN : Brown
- BU : Blue
- BK : Black

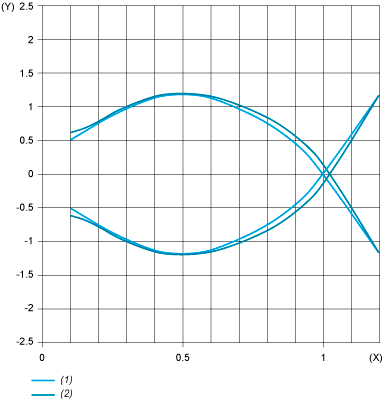

Detection Curves
- (1) Vertical movement
- (2) Horizontal movement
- (Y) Parallel movement (cm)
- (X) Distance (m)
