XY2CE2A270EX

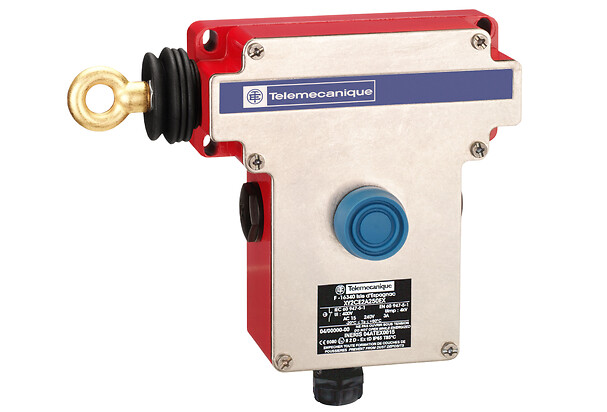

Latching emergency stop trip wire switch, Telemecanique Emergency stop rope pull switches XY2C, rope pull e XY2CE, LH side -2NC, booted pushbutton

arrow

Commercialised

Download pdf datasheet Download 3d cad file Find a distributor

Expand all

Datasheet

Housing colour
-
Connections - terminals
-
Safety level
Can reach PL = e with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach category 4 with the appropriate monitoring system and correctly wired conforming to ISO 13849-1, can reach SIL 3 conforming to IEC 61508
Safety reliability data
B10d = 300000 value given for a life time of 20 years limited by mechanical or contact wear
Positive opening
-
Resistance across terminals
25 MOhm conforming to IEC 60255-7 category 3, 25 MOhm conforming to NF C 93-050 method A
Vibration resistance
10 gn (f= 10-300 Hz) conforming to IEC 60068-2-6
Shock resistance
-
IP degree of protection
IP65
Unit type of package 1
PCE
Number of units in package 1
1
Package 2 height
20.5 CENTIMETER
Package 2 width
15.5 CENTIMETER
Package 2 length
9 CENTIMETER
Package 2 weight
1.597 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Expand all

Technical Drawings

Dimensions

epds
  • (1) 3 plain holes for Pg 13.5 cable gland.
  • (2) Maximum extension.
  • Ø 4 elongated holes Ø 6 mm/0.24 in.

Electrical Curves

AC Supply 50/60 Hz Inductive Circuit

epds
  • Y Millions of operating cycles
  • X Current in A

Electrical Curves

Expand all

Documents & Downloads

Document name
Date
Size
cable (tripwire) operated Emmergency stop ATEX Dust. Reset by booted pushbutton. Operating cable anchoring point to left (dxf)

1/4/2008

201705

cable (tripwire) operated Emmergency stop ATEX Dust. Reset by booted pushbutton. Operating cable anchoring point to left (wmf)

1/4/2008

34226

cable (tripwire) operated Emmergency stop ATEX Dust. Reset by booted pushbutton. Operating cable anchoring point to left (eps)

1/4/2008

563362

cable (tripwire) operated Emmergency stop ATEX Dust. Reset by booted pushbutton. Operating cable anchoring point to left (dwf)

1/4/2008

6104

cable (tripwire) operated Emmergency stop ATEX Dust. Reset by booted pushbutton. Operating cable anchoring point to left (dwg)

1/4/2008

86726

cable (tripwire) operated Emmergency stop ATEX Dust. Reset by booted pushbutton : Operating cable anchoring point to left (wmf)

1/4/2008

18042

cable (tripwire) operated Emmergency stop ATEX Dust. Reset by booted pushbutton : Operating cable anchoring point to left (dwf)

1/4/2008

2726

cable (tripwire) operated Emmergency stop ATEX Dust. Reset by booted pushbutton : Operating cable anchoring point to left (eps)

1/4/2008

297962

cable (tripwire) operated Emmergency stop ATEX Dust. Reset by booted pushbutton : Operating cable anchoring point to left (dwg)

1/4/2008

50541

cable (tripwire) operated Emmergency stop ATEX Dust. Reset by booted pushbutton : Operating cable anchoring point to left (dxf)

1/4/2008

87633

Document name
Date
Size
TESECER000404EN-RoHS_Declaration_for_XY2CE_Range-16052025 (pdf)

2025-05-16

335174

TESECER000487EN-REACH_Declaration-V30_for_XY2CE_Range-19052025 (pdf)

2025-05-19

318917

Document name
Date
Size
XY2CE... and XY2CED... emergency stop trip wire switches - cUL certificate of compliance (pdf)

2023-07-25

814696

XY2CE... and XY2CED... emergency stop trip wire switches - UL certificate of compliance  (pdf)

2023-07-25

815544

Document name
Date
Size
XY2CE*** EMERGENCY STOP ROPE PULL SWITCH - User Instructions (pdf)

2025-09-15

10895759

Document name
Date
Size
XY2CE...EX EMERGENCY STOP ROPE PULL SWITCH ATEX D, Instruction Sheet (pdf)

2022-11-01

2674615
