XZCC12FCP42B

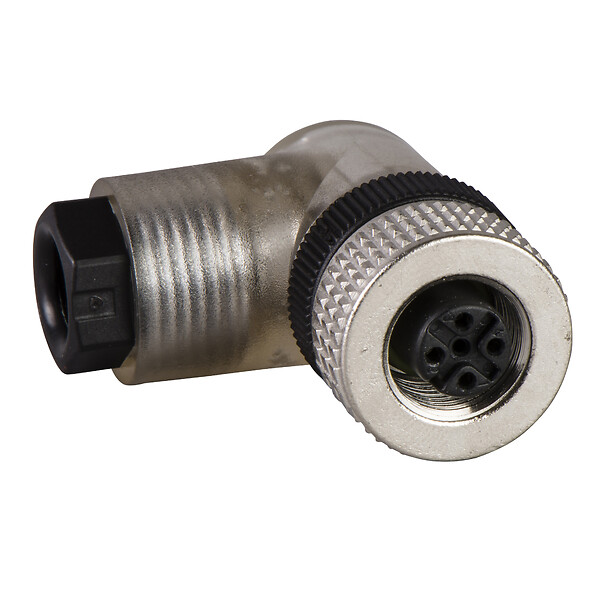

Female, M12, 4 pin, elbowed connector, cable gland Pg 7
Commercialised
Expand all
Datasheet
Accessory / separate part type
Connector
Accessory / separate part category
Cabling accessories
Electrical connection
Elbowed female connector M12, 4 pins
Collar material
Plastic
Cable connection
-
IP degree of protection
IP67
[Ue] rated operational voltage
10...30 V DC
Insulating resistance
1000 GIGAOHM
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S02
Number of units in package 2
50
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
4.105 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
- (1) Cable gland : no. 7 plastic (Pg 7)
Connections and Schemes
Connections and Schemes
LED Connection
- BN : Brown
- BK : Black
- BU : Blue
- GN : Green
- YW : Yellow
- (1) Signal
