XZCP0941L5
Pre wired connectors XZ, straight female, M8, 4 pins, cable PUR 5 m
Commercialised
Expand all
Datasheet
Accessory / separate part type
Pre-wired connectors
Accessory / separate part category
Cabling accessory
Electrical connection
Straight female connector M8, 4 pins
Cable composition
4 x 0.34 mm²
Collar material
Metal
IP degree of protection
IP65
IP67
IP69K
IP67
IP69K
Product certifications
cULus
[Ue] rated operational voltage
60 V AC, 75 V DC
Wire insulation material
PUR
Insulating resistance
1 GIGAOHM
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S02
Number of units in package 2
20
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
10.308 KILOGRAM
Unit type of package 3
P06
Number of units in package 3
320
Package 3 height
75 CENTIMETER
Package 3 width
60 CENTIMETER
Package 3 length
80 CENTIMETER
Package 3 weight
61.936 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Documents & Downloads
Document name
Date
Size
2024-06-28
4263041
2025-01-13
8843040
2024-12-02
256729340
2024-12-02
4814059
Document name
Date
Size
2024-02-07
4923197
2025-06-30
29035707
2024-02-01
6728180
2024-10-31
31713778
Document name
Date
Size
7/18/2024
125917
7/18/2024
13410
7/18/2024
14935
7/18/2024
19065
7/18/2024
19672
7/18/2024
21626
7/18/2024
21785
7/18/2024
21817
7/18/2024
21848
7/18/2024
26454
7/18/2024
266879
7/18/2024
27413
7/18/2024
27511
7/18/2024
27514
7/18/2024
41289
Document name
Date
Size
2025-05-16
544270
2025-02-28
439601
Document name
Date
Size
Expand all
Related products & accessories

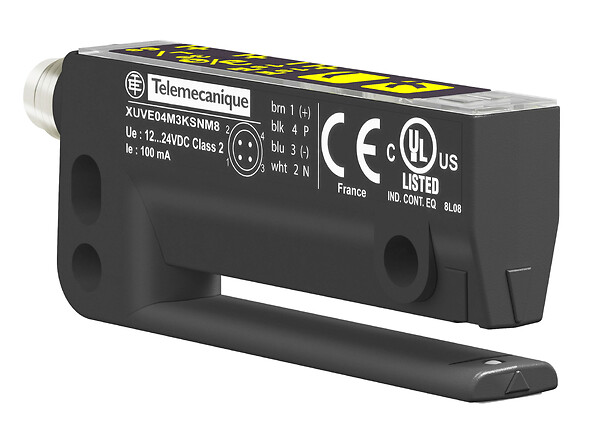

XUVE04M3KSNM8
Photoelectric sensors XU, photoelec sensor label fork 40x3, 12...24 V DC, PNP/NPN NO/NC connect M8
XUVE04M3NSNM8
Photoelectric sensors XU, photoelec sensor label fork 40x3, 12...24 V DC, NPN NO/NC connect M8
XUVE04M3PSNM8
Photoelectric sensors XU, photoelec sensor label fork 40x3, 12...24 V DC, PNP NO/NC connect M8
XUVU06M3KSNM8
Photoelectric sensors XU, ultrasonic sensor label fork 60x3, 12...24 V DC, PNP/NPN NO/NC connect M8
XUVU06M3NSNM8
Photoelectric sensors XU, ultrasonic sensor label fork 60x3, 12...24 V DC, NPN NO/NC connect M8

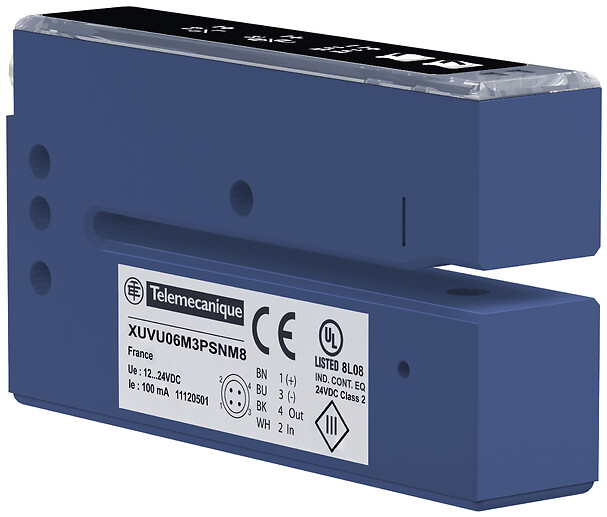

XUVU06M3PSNM8
Photoelectric sensors XU, ultrasonic sensor label fork 60x3, 12...24 V DC, PNP NO/NC connect M8

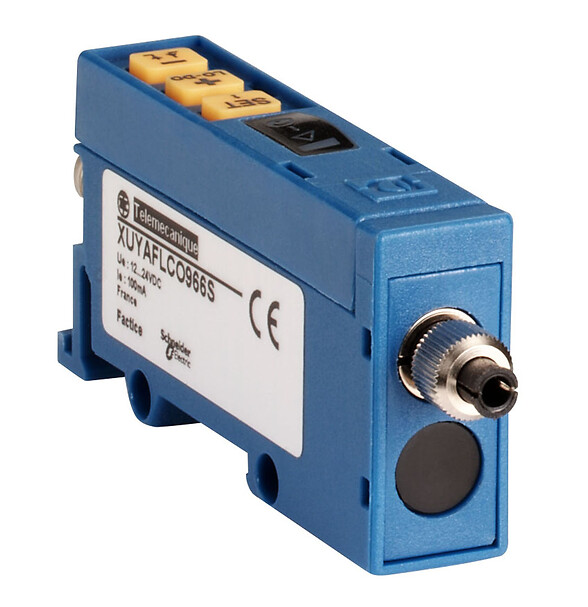

XUYAFLCO966S
Photoelectric sensors XU, XUY, ampli for fibre, illumination, 12...24 VDC, M8

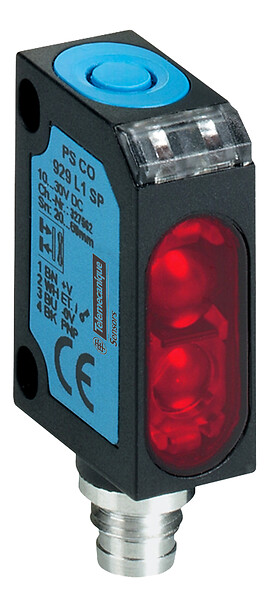

XUYBCO929LSP
Photoelectric sensors XU, XUY 929, polarised, laser, Sn 1 m, 12...24 VDC, M8

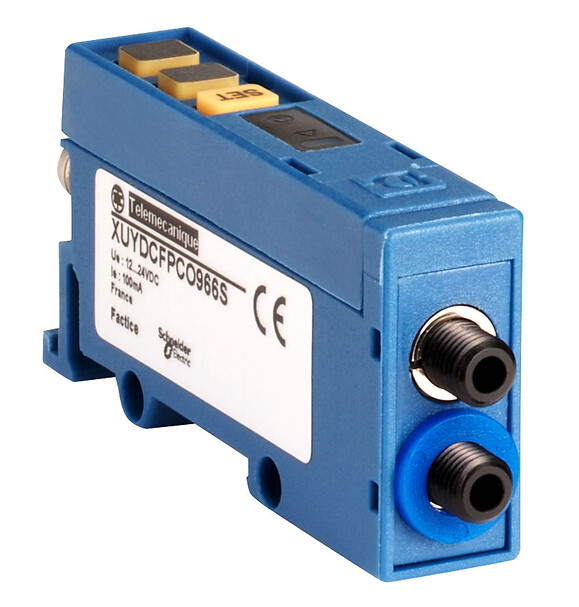

XUYDCFCO966S
Photoelectric sensors XU, XUY, M8 connector, Sn 4 mm, discrete solid state

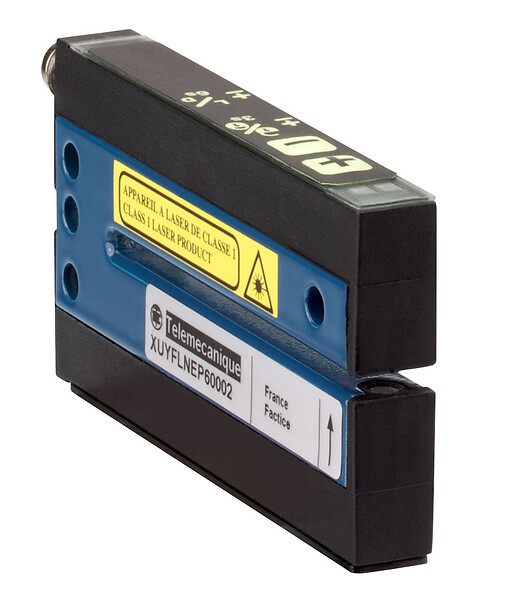

XUYFLNEP40002
Photoelectric sensors XU, XUY, fork, laser, pot +/-, 2X42mm, 12...24 VDC, M8
XUYFNEP40002
Photoelectric sensors XU, XUY, fork, pot +/-, 2X42mm, 12...24 VDC, M8

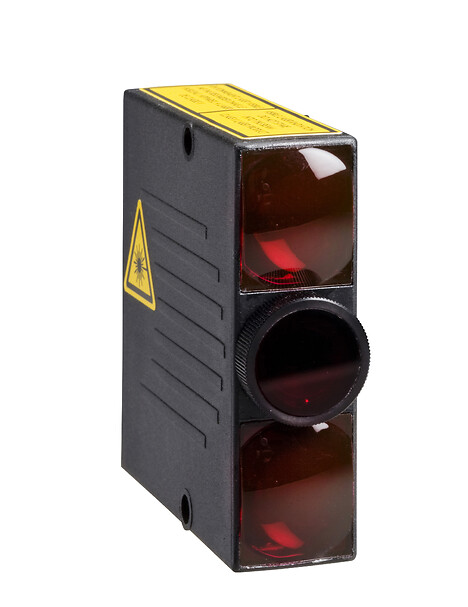

XUYPS1LCO965S
Photoelectric sensors XU, XUY, BGS, laser, Sn 300 mm, 12...24 VDC, M8

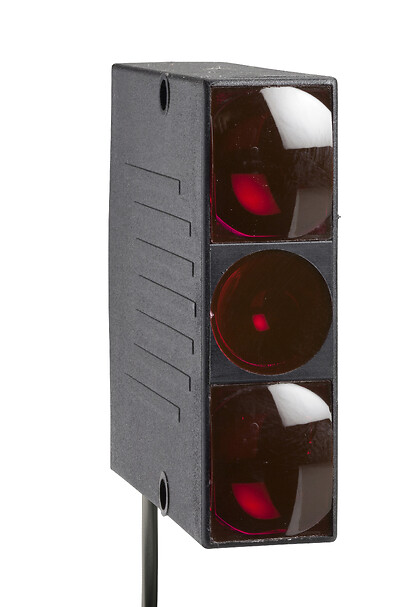

XUYPS2945S
Photoelectric sensors XU, XUY, BGS, 2 channels, Sn 600 mm, 12...24 VDC, cable 2 m

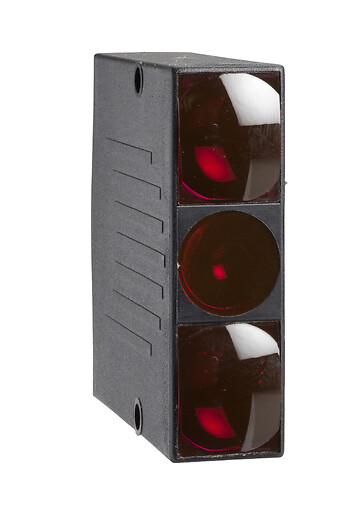

XUYPS2CO945S
