XZCPV12V12L2

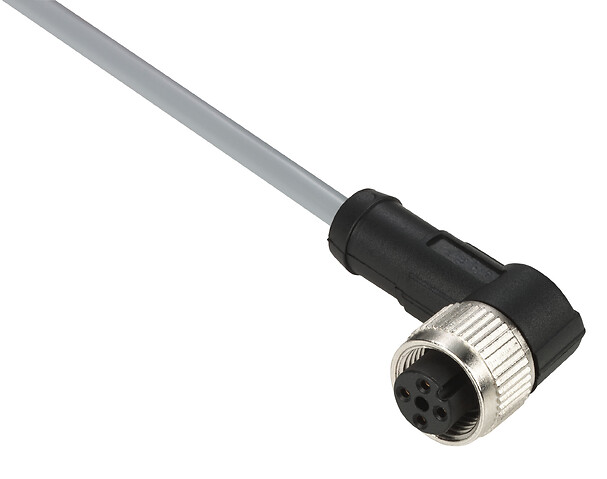

Pre wired connectors XZ, elbowed female, M12, 5 pins, cable PVC 2 m
Commercialised
Expand all
Datasheet
Accessory / separate part type
Pre-wired connectors
Accessory / separate part category
Cabling accessory
Series name
General purpose
Electrical connection
Elbowed female connector M12, 5 pins
Cable composition
5 x 0.34 mm²
Collar material
Metal
Status LED
Without
IP degree of protection
IP65
IP67
IP67
Product certifications
cULus
[Ue] rated operational voltage
60 V AC, 75 V DC
Cable connector fixing
Screw-on
Wire insulation material
PVC
Insulating resistance
1 GIGAOHM
Unit type of package 1
PCE
Number of units in package 1
1
Unit type of package 2
S02
Number of units in package 2
40
Package 2 height
15 CENTIMETER
Package 2 width
30 CENTIMETER
Package 2 length
40 CENTIMETER
Package 2 weight
3.776 KILOGRAM
Indivisible sale quantity
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
- L : Length of cable
Connections and Schemes
Connectors
- BU : Blue
- BN : Brown
- BK : Black
- GY : Grey
- BK/WH : Black / White
Expand all
Documents & Downloads
Document name
Date
Size
2024-06-28
4263041
Document name
Date
Size
2024-02-07
7696951
2024-02-07
18921683
Document name
Date
Size
2025-05-16
544270
2025-02-28
439601
