XSZBE90

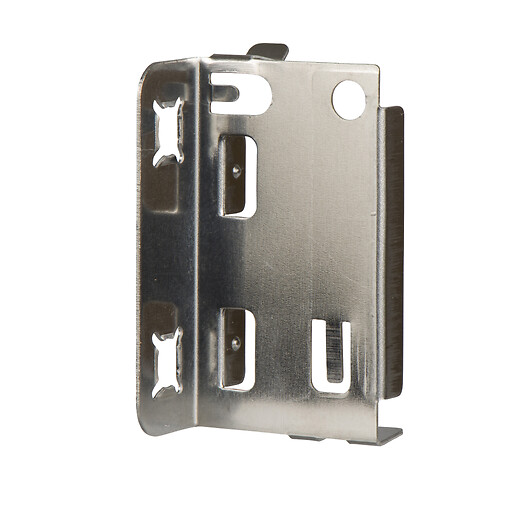

Accessory for sensor, clip 90° fixing bracket
End of commercialisation End of commercialization date : End of service date :
Expand all
Datasheet
Accessory / separate part category
Mounting and fixing accessories
Accessory / separate part designation
Clip-on 90° fixing bracket
Accessory / separate part type
Fixing bracket
Accessory / separate part destination
Flat form 26 x 26 x 13 sensor
flat form 26 x 26 x 13 station
flat form 26 x 26 x 13 tag
flat form 26 x 26 x 13 station
flat form 26 x 26 x 13 tag
Quantity per set
Set of 1
Additional information
Mounting possible without clip on tapped hole
Product compatibility
XG flat form 26 x 26 x 13
XS flat form 26 x 26 x 13
XS flat form 26 x 26 x 13
Unit type of package 1
PCE
Number of units in package 1
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings
Dimensions
Mounting Brackets
- (1) 2 screws M3 x 12
