XCC1510PSM50Y
Opto-electronic rotary encoders XCC, incremental encoder Ø 58, solid shaft 10 mm, 5000...80 K points, push pull
End of commercialisation End of commercialization date : End of service date :
Expand all
Datasheet
Range of product
OsiSense XCC
Encoder type
Incremental encoder
Product specific application
Not applicable
Encoder name
XCC
Enclosure material
Zamak
Complementary function
Parameterable
[Us] rated supply voltage
5...30 V DC
Shaft type
Solid shaft
Resolution
5000...80000 points
Output stage
Type Y
Type of output stage
Driver push-pull
Electrical connection
1 male connector M23 radial 12 pins
IP degree of protection
IP65 conforming to IEC 60529
Current consumption
0...75 mA no-load
Protection type
Reverse polarity protection
short-circuit protection
short-circuit protection
Marking
CE
Residual ripple
500 mV
Vibration resistance
10 gn (f= 55-2000 Hz) conforming to IEC 60068-2-6
Maximum load
10 daN radial, 5 daN axial
Shock resistance
30 gn for 11 ms conforming to IEC 60068-2-27
Output level
Low level: 0.5 V maximum 20 mA, high level: V supply - 2.5 V minimum 20 mA
Base material
Aluminium
Shaft material
Stainless steel
Type of ball bearings
6000ZZ1
Unit type of package 1
PCE
Number of units in package 1
1
California proposition 65
WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Expand all
Technical Drawings

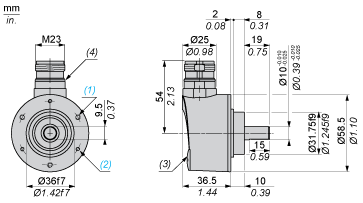

Dimensions
- (1) 3 M4 holes at 120° on 48 PCD, depth: 8 mm
- (2) 3 M3 holes at 120° on 48 PCD, depth: 8 mm
- (3) Blanking plug
- (4) Nitrile seal
Wiring Diagram
Type Y Output Stage
- (1) RS 422 compatible on 5 V supply
- (2) Encoder
- (3) Processing
- (4) Supply 5 V/30 V
Wiring Diagram
M23, 12-pin Connector Connections
Wiring Diagram
Resolutions for Parameterable Ø 58 mm Encoders
Expand all
Documents & Downloads
Document name
Date
Size
11/21/2007
317478
11/21/2007
3956
11/21/2007
40151
11/21/2007
51578
11/21/2007
56371
11/21/2007
228018
11/21/2007
3013
11/21/2007
32760
11/21/2007
40466
11/21/2007
61204
11/21/2007
120659
11/21/2007
305274
11/21/2007
44434
11/21/2007
60517
Document name
Date
Size
2013-10-01
600848
Expand all
Related products & accessories
XCCPM23121L10
Pre wired M23 female connector, for incremental encoder, cable 10 m
XCCPM23121L2
Pre wired M23 female connector, for incremental encoder, cable 2 m
XCCPM23121L5
Pre wired M23 female connector, for incremental encoder, cable 5 m
XCCRAR1008
shaft coupling - for encoder - with spring Ø 10 to 8 mm
XCCRAR1010
Shaft coupling, for encoder, with spring Ø 10 to 10 mm
XCCRAR1012
Shaft coupling, for encoder, with spring Ø 10 to 12 mm
XCCRAR1014
shaft coupling - for encoder - with spring Ø 10 to 14 mm
XCCRAS1208
shaft coupling - for encoder - homokinetic with bellows Ø 12 to 8 mm
XCCRAS1212
shaft coupling - for encoder - homokinetic with bellows Ø 12 to 12 mm
XCCRAS12U25
shaft coupling - for encoder - homokinetic with bellows Ø 12 mm to 0.25 inch
XCCRAS12U37
shaft coupling - for encoder - homokinetic with bellows Ø 12 mm to 0.375 inch
XCCRAS12U50
shaft coupling - for encoder - homokinetic with bellows Ø 12 mm to 0.5 inch

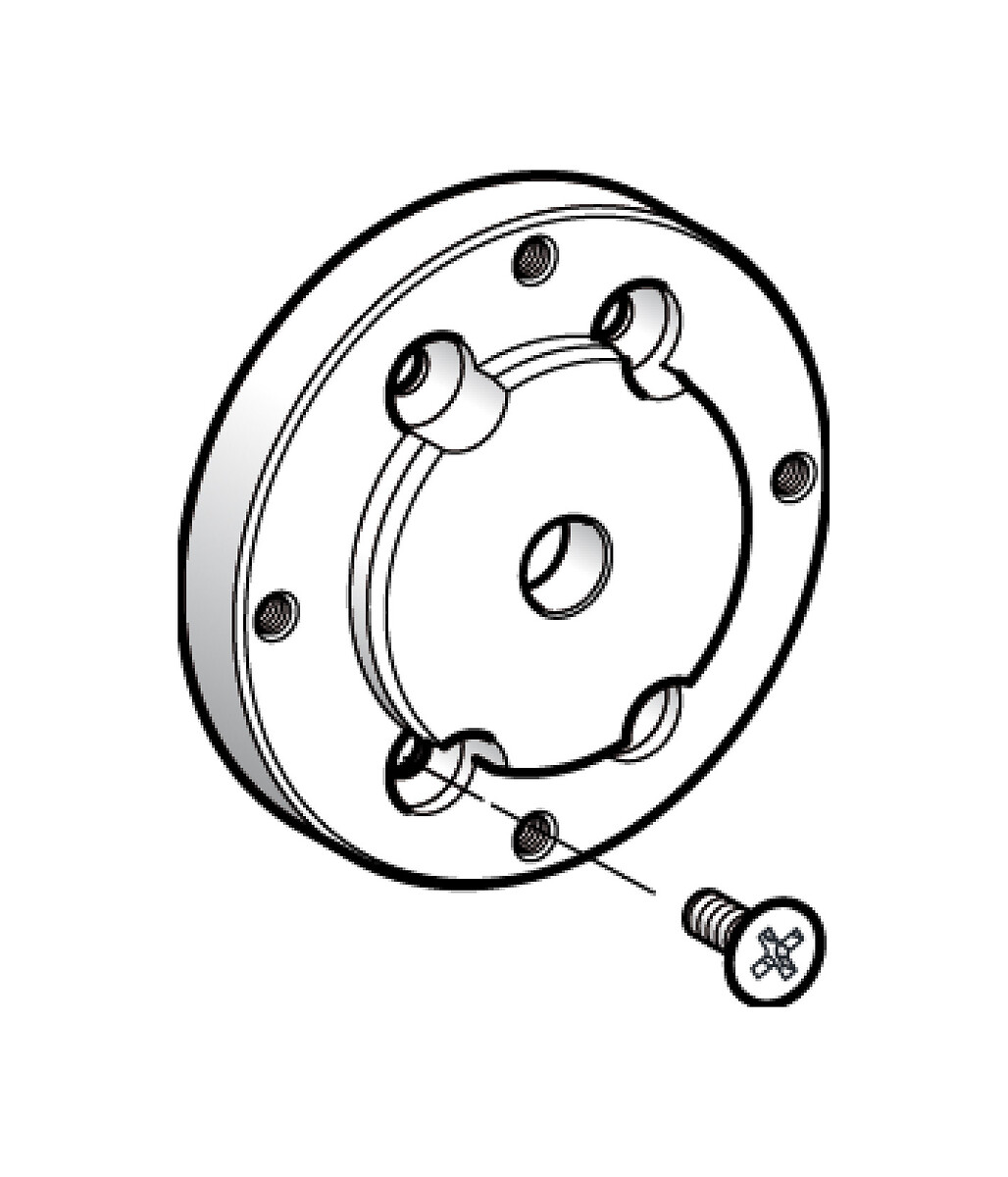

XCCRB2
